| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO |
| Model Number: | WITB102 |
| Minimum Order Quantity: | 1PC |
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50PCS/week |
| Motor Material: | Steel And Aluminum Alloy | Width Length: | 500--900MM |
|---|---|---|---|
| Standard Package: | Wooden Package | Leading Time: | 3-5 Days After Payment Being Received |
| Transit Speed: | 30~40 Persons/min | Motor Type: | Brush DC24V |
| High Light: | speed gate systems,waist high turnstiles |
||

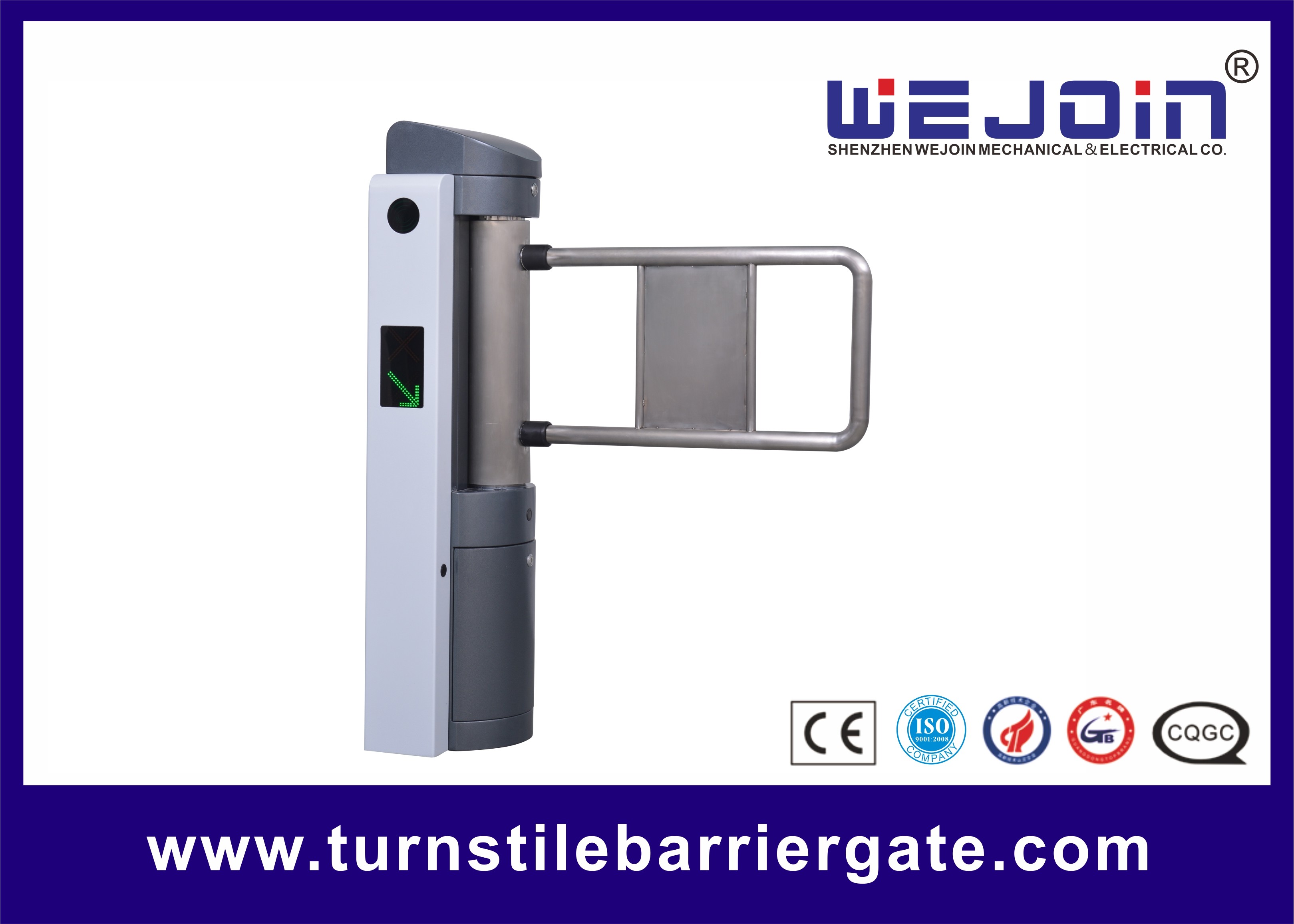

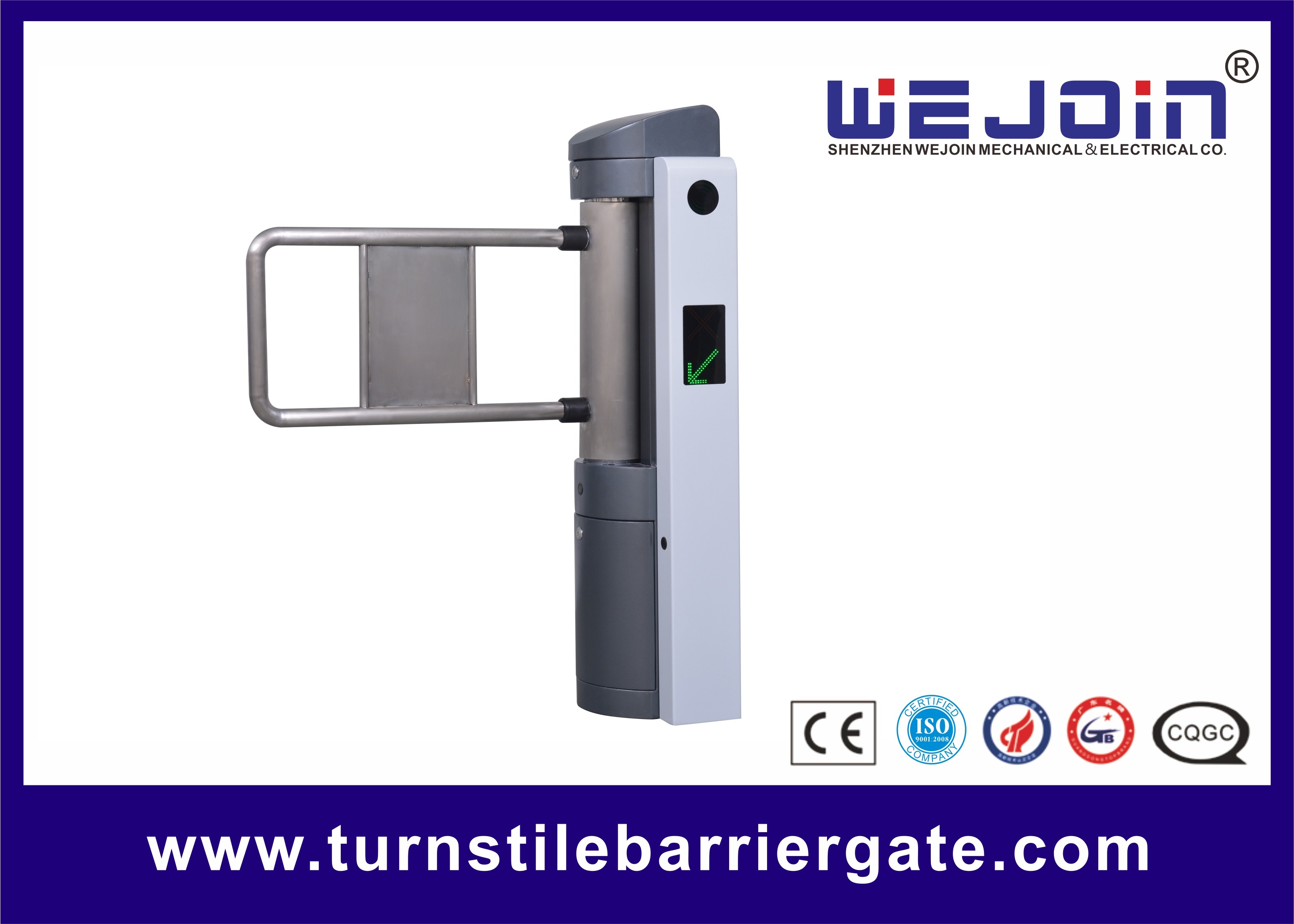

Security Automatic Turnstiles Swing Barrier Gate For School , Hotel , Subway
Quick Detail:
Specifications
|
Model Item |
Swing Barrier Mechanism |
| Mechanism Dimension | 108*450mm |
| Arm Length(Optional) | 500-900mm |
| Swing Direction | double direction or single |
| Voltage | 220V+-15% or 110V+-15% |
| Driving Motor | DC24V,brush |
| Motro Material | Steel and Aluminum Alloy |
| Input Interface | Dry Contact and Switch Signal Connection |
| Starting time after power on | 3 seconds |
| Time for Opening or Closing | 1 second |
| Transit Speed | 30~40 persons/min |
| Working Environment | Indoor / Outdoor (Shelter) |
| Working Temperature | —25°C~50°C |
| Relative Humidity | ≤90%, with no condensation |
Dimension
Description:
1. WEJOIN swing barriers have a compact electro-mechanical design with unique drive which and a self-lock mechanism to ensure product durability and silent operation
2. Secondly, WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.
3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, token system etc.
4. Fourthly, WEJOIN swing barriers have auto closing function when power on
5. Fifthly, WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.
6. Sixthly, WEJOIN swing barriers input interface available for dry contact and switch signal connection
