Wing 600mm SST 304 Full automatic Flap Turnstile Barrier Gate

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJTY600
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 10-30days
Payment Terms: T/T, Western Union
Supply Ability: 50pcs/week
Detail Information
Hairline Elegance Finishing: Yes Battery: No
New Product: Yes Max Lane Wide: 600mm
Housing Thick: More Than 1.5mm Transit Speed: 30~40 Person/min
High Light:

security turnstiles

,

optical turnstile


Product Description

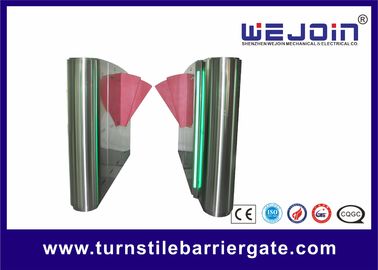

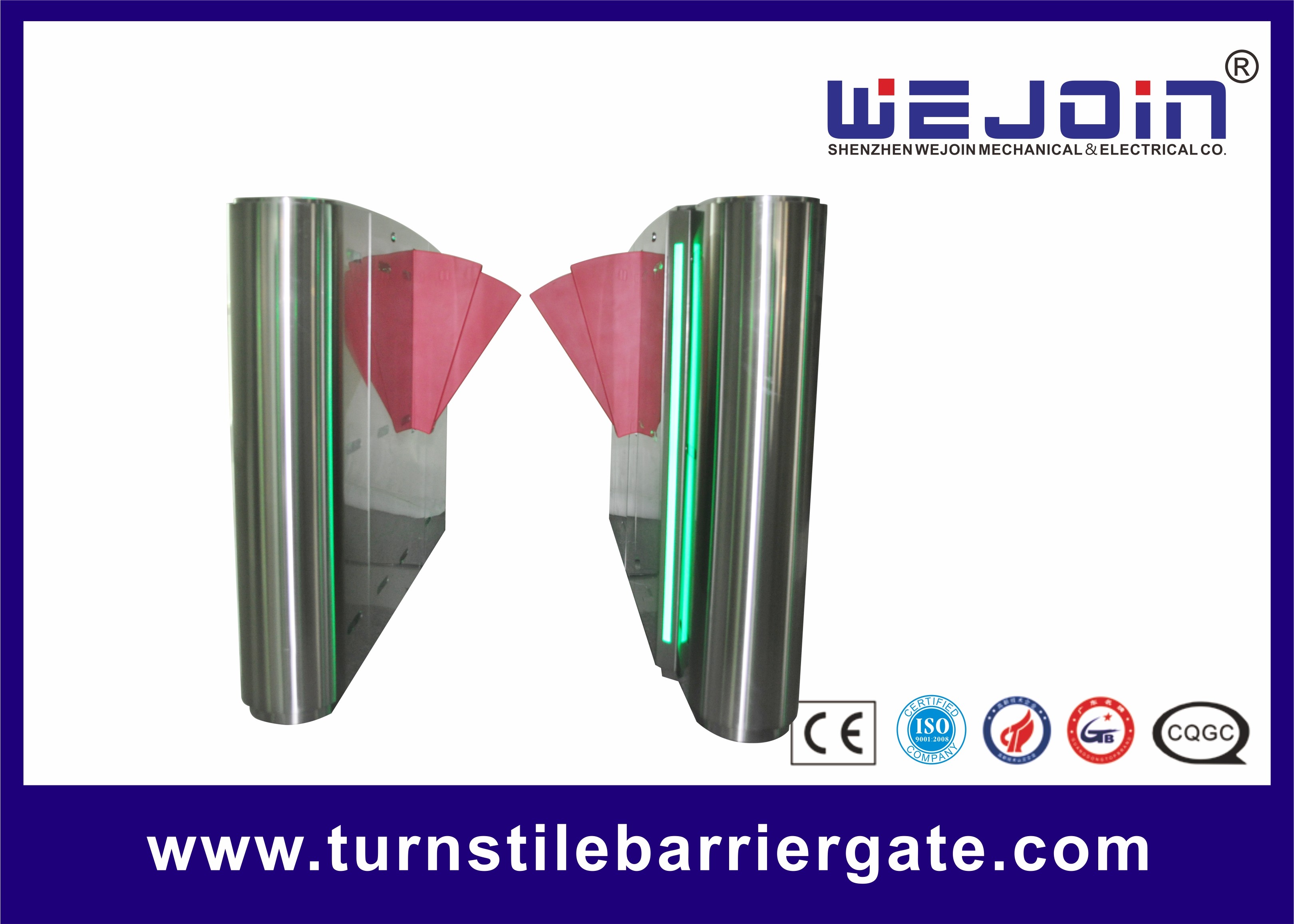

Wing 600mm SST 304 Full automatic Flap Turnstile Barrier Gate

Function& Feature:
1.Equipped with a standard input/output signal interface, can be integrated with all types of the access control paneloffering complete entrance control solutions.

2. Anti-collision function, the flaps will stay close if not receiving the open signal.
3.Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signals for emergencies. It will open automatically in case of an emergency.
4.Flaps reset to lock position when access time expires.
5.Prevents Invalid/Tailgate/Wrong direction access.
6.LED Array indication for an access granted/denied.
7. Compatible with diverse access control devices.
8. Pedestrian flow directions can be single or double directions.

Technical data :

Model
Item

WJTY202 WJTY301 WJTY311
Material of Housing 304 Stainless Steel
The material of Flap Door Organic Glass, Resin, or PVC
Dimension of housing 1200*270*1000 1450*315*1020 1400*305*1020
Thickness of housing 1.5mm
Max Width of Passage 600 900 900
Net weight 70kg 140 kg 85 kg
Normal Life Span 3 million times
Communication Interface Standard RS485(distance less than 1200 meters)
Transit speed 30-40 persons/min
Power supply 220V±10%, 110± 10%
Frequency 50/60HZ
The working voltage of the motor DC24V
Time for opening or closing 1s
Starting time after power on 3s
Input interface

Dry contact signal or +12Vor pulse
signal with width more than
100ms DC12V

Transit speed 25~32 persons/min
Working temperature -10°C~50°C
Working environment Indoor / Outdoor (Shelter)
Relative humidity ≤95%, no condensation



Wing 600mm SST 304 Full automatic Flap Turnstile Barrier Gate 0
