Steel Security Entrance Swing Arm Barriers Systems For Streetcar Station

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WITB104
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: wooden package
Delivery Time: 5-10 days
Payment Terms: Western Union, T/T
Supply Ability: 50PCS/week
Contact Now
Detail Information
Motor Material: Steel And Aluminum Alloy Steel And Aluminum Alloy: Steel And Aluminum Alloy
Motor Type: Brush DC24V Power Supply: 220V±10%, 110V±10%
Transit Speed: 30~40 Persons/min Protection Grade: IP32

Product Description

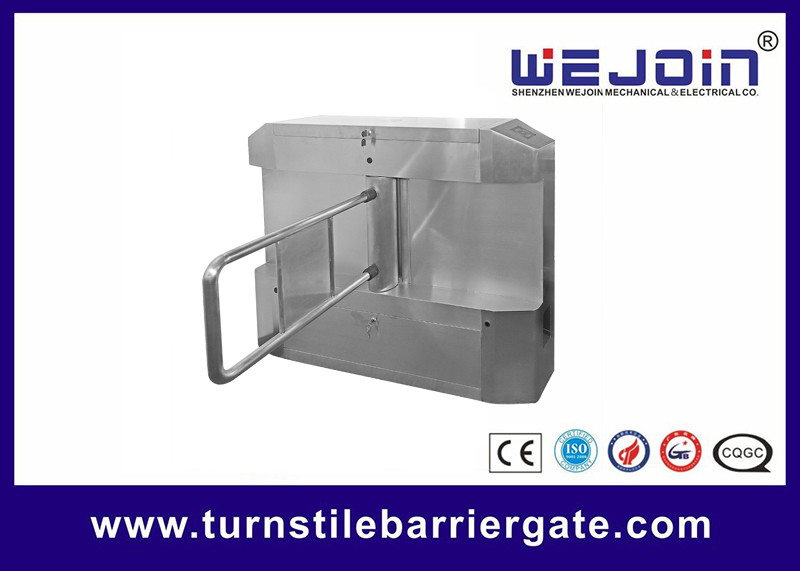

Steel Security Entrance Swing Arm Barriers Systems For Streetcar Station



Quick Detail:

  • Name: Swing Barrier gate

  • Application: Streetcar station

  • Material: Stainless steel

  • Feature: Auto-reverse passing

  • Motor material: Steel and aluminum alloy

  • Certificate: CE,ISO

  • Motor type: DC24V,brush

  • Relative hunmidity:≤90%,with no condensation



Description:

1. WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.

2. Secondly, WEJOIN swing barriers have a compact electro-mechanical design with unique drive which and a self-lock mechanism to ensure product durability and silent operation

3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, token system etc.

4. Fourthly,  WEJOIN swing barriers input interface available for dry contact and switch signal connection

5. Fifthly, WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.

6. Sixthly, WEJOIN swing barriers have auto closing function when power on



Specifications

Model

Item

Swing Barrier Mechanism
Mechanism Dimension 108*450mm
Arm Length(Optional) 500-900mm
 Swing Direction double direction or single
Voltage 220V±15% ,110V±15%
Driving Motor DC24V,brush
Motro Material Steel and Aluminum Alloy
Input Interface Dry Contact and Switch Signal Connection
 Starting time after power on 3s
Time for Opening or Closing 1s
Transit Speed 30~40 persons/min
Working Environment Indoor / Outdoor (Shelter)
Working Temperature —25°C~50°C
Relative Humidity ≤90%, with no condensation



Steel Security Entrance Swing Arm Barriers Systems For Streetcar Station
