Metro Station Flap Barrier Gate Automatic Single / Double Core 12 Months Warranty

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJTY203
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Wooden box
Delivery Time: 10-30 days
Payment Terms: T/T, Western Union
Supply Ability: 50PCS/week
Contact Now
Detail Information
Product Name: Flap Barrier Material: 304 Stainless Steel
Type: Single Core ; Double Core Warranty: 12 Months
Direction: One Or Bi-direction(optional) Application: Ticket Station

Product Description

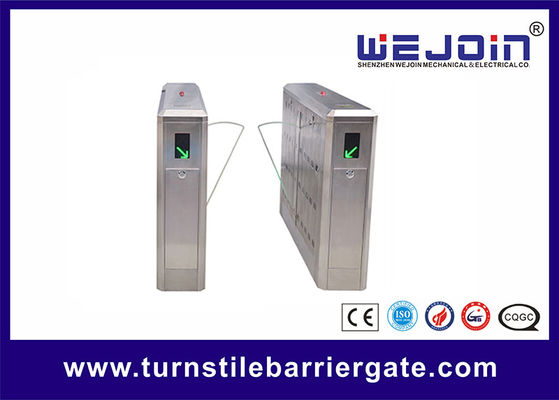

Metro station flap barrier gate automatic flap barrier turnstile

Product Introduction
Intelligent flap barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations and other high level venues and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.

Flap Barrier Gate Quick Detail:

  • Material: 304 stainless steel

  • working temperature :-10°C~50°C

  • Function: automatic

  • Direction: bi-direction

  • Power supply :AC220V±15%, AC110V±15%

  • Motor voltage :DC12V (brush motor)


Flap Barrier Gate Description:
1. Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier.
2. Intelligent flap barrier is a brand-new product of WEJOIN company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control. WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high technology.
3. It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.
4. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.
5. Flap barrier motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.

Flap Barrier Gate Applications:
High class communities, intelligent buildings, hotels, subway stations and other high level venues.

Flap Barrier Gate Functions and Features
1) A compact clcctro-mcchanical design with unique drive and a self-lock mechanism
2) Automatic detection for malfunctions
3) Input interface available for dry contact and switch signal connection
4) Adjustable auto-dclay closing
5) Infrared photocells for safety access
6) Alarm for unauthorized access and no access against passenger flow
7) Anti-reverse passing
8) Auto-closing when power on
9) Auto-open and free access when power off
10) Adjustable access directions
11) Emergency interface available
12) Traffic light indicating passenger access


Flap Barrier Gate Specifications


Model

WJTY203

Material of Housing

304 Stainless Steel

Material of Flap Door

Organic Glass

Dimension of Housing (LxWxH mm)

1380*270*1000

Max Width of Passage

600mm

Power supply

220V±10% , 110V±10%

Frequency

50/60 HZ

Working voltage of motor

DC24V

Starting time after power on

3 seconds

Transit Speed

30 ~ 40 persons/ min

Working Environment

Indoor / Outdoor (Shelter)

Working Temperature

-10°C~50°C

Relative Humidity

≤95%, no condensation
