Remote Control Parking Barrier Gate 3 Fence Boom Control Access System 200 Watt

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: S18
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Contact Now
Detail Information
Operating Time: 3s, 6s Boom Type: 3 Fence
Color: Black And Red Application: For Enterprises And Institutions
Warranty: 1 Year Boom Length: Max 6M (customized)

Product Description

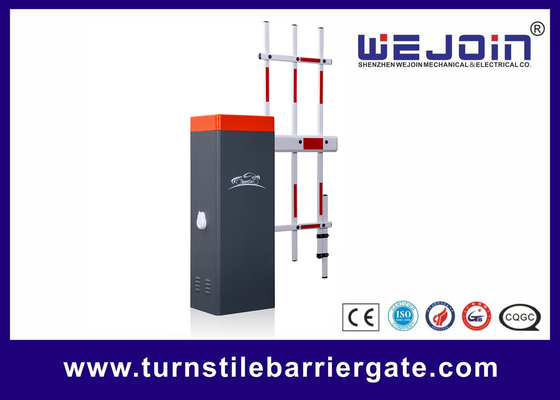

3 Fence Boom Remote Control Parking Barrier Gate For Control Access System


Parking Barrier Gate Brief Introduction:
The WJDZJ intelligent barrier gate is one types of our company’s products with the latest technological design to realize the automatic and intelligent operation. Further more, the unique clutch device and the balance device has made the barrier gate become more reliable.

Parking Barrier Gate Technical Data:

Model (WJDZ)

S18-13

S18-16

S18-23

S18-26

S18-33

S18-36

S18-46

S18-56

Speed

3s

6s

3s

6s

3s

6s

6s

6s

Arm Type

Straight
(Telescopic arm is optional)

90° folding

180° folding

2 fencing

3 fencing

Max Arm Length

4.5m

6m

3m

5m

3m

5m

4m

3.5m

Arm Dimension

45*100mm

Voltage

AC220V±10%, AC110V±10%

Frequency

50/60HZ

Power Consumption

200W

Humidity

≤90%

Working Temperature

-35°C∼+60°C

Housing Dimension
(W*D*H)

335*285*925mm

Enclosure Rating

IP54

MTBF

2500000 times

Net Weight

40KGS

Gross Weight

45KGS



Parking Barrier Gate Packing List

Name

Specification

Quantity

Unit

Application

Screw, Nuts, Flat Pad

M12*70

2

sets

Fixing the boom

Boom Fixing Bar



1

pcs

Fixing the boom

Boom Holder Plastic Cover



1

sets

Optional

Cabinet Fixing Bar



2

pcs

Fixing the boom

Expansion Screws

M16*150

4

sets

Fixing the boom

Support Post



1

pcs

Optional

Radio Emitter



1

pcs

Optional

Keys



2

pcs

For cabinet door

Remote Controller



2

pcs



Manual



1

pcs





Parking Barrier Gate Warranty and Service Items
Free service is oFFered for component parts in one year warranty time.
(not includes the barrier boom or remote)

Lifetime service with charge accordingly.
Technical questions are supported.



Parking Barrier Gate Features:
1.Wheel manual release.
In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually.
when power on,the motor will work normally.
2.Machine core with strong and double spring,make the machine core works more steadly.
3.Die-casting aluminum alloy motor,precise and good at thermal radiation.
4.Crank and rod structure makes the boom run placidly
5.Double safety limit switches(photo electricity limit swithch and motor memory sensor)
6.Reversing on obstacle
7.Auto-closing
8.Support the infrared photocell for antibumping function(optional)
9.Support external and internal vehicle loop detector(optional)
10.Traffic light interface(ac 22v,can support lamp with 40w)
11.Wire control / remote control(418MHZ)
12.Digital limit, more precise
13.Open,close control interface for parking system
14.Provide limit state signal to parking system

Parking Barrier Gate Applications:

  • station

  • highway toll gate

  • high-grade residential area

  • commercial parking lots

  • enterprises and institutions

  • Commercial Plaza


WEJOIN's Main Advantages

  1. Global leading company for barrier gate

  2. Master of core technology and innovation

  3. Intelligent quality manufacturing process and automatic flexible production

  4. Global advanced manufacturing process and testing equipment

  5. Servo,variable frequency,double speed,bi-direction motor and other leading technique

  6. High speed and low speed coexist in motor

  7. Intergral service network covering fist-tier and second-tier cities,and more under construction service network


FAQ
Q1: What is your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you manufacturer? Do you provide ODM / OEM service?
A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.
Q3: I would like to ask if this is with RFID card reader and controller?
A: Yes, there is a controller, our barrier gate can connect with RFID card reader.
Q4: What boom types of your barrier gate?
A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm ,etc
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Whithin one years, if any problems, we will offer the accessories.
Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?
A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.
