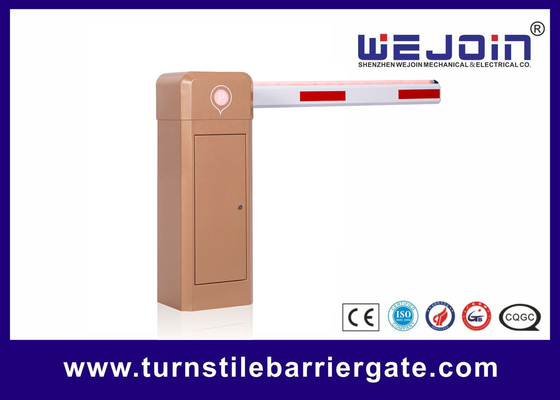

Traffic Access Road LED Boom Vehicle Barrier Gates Steel Housing For Car Parking Lot

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: CB01SV
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton
Delivery Time: 12 working days after payment received
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000 sets/month
Contact Now
Detail Information
Boom Type: Straight Boom Voltage: AC 110V Or 220V
Application: Parking Lot Speed: 1-2s/3-5s Speed Adjustable
Material: Steel Housing Usage: Parking Lots/toll Gate/highway

Product Description

Automatic Traffic Access Road LED Boom Barrier Gate for Car Parking Lot



Vehicle Barrier Gate Quick Detail:

The technology is applied to drive motor of electric vehicle and spindle motor of CNC lathe.

# Strong moment, high precision control, low temperature rise

# Standard traffic lights

# 1-2s/3-5s speed adjustable

# gold, black and orange color optional



Vehicle Barrier Gate Brief Introduction:

This is our newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operate more steadily and more reliably. This product is highlighted in frequency applications and longer lifetime.



Vehicle Barrier Gate Mechanism Structure

Traffic Access Road LED Boom Vehicle Barrier Gates Steel Housing For Car Parking Lot



Vehicle Barrier Gate Functions & Features

1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power conaumption, high efficiency and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display, displays more information.
10). NO/NC wire control signal input are optional.
11). Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.



Vehicle Barrier Gate Technical Data

Model

WJCB01SV-H

WJCB01SV-I

Running Speed

1/1.5/2S

3/4/5S

5S

5S

5S

5S

Boom Type

Straight

Straight

90° Folding

180° Folding

2 Fence

3 Fence

Max Boom Length

3.5M~4.5M

4.5M~6M

5M

4M

4.5M

4M

Input Voltage

AC220V±10%, AC110V±10%

Frequency

50/60HZ

Motor Voltage

DC310V

Enclosure Rating

IP54

Working Temperature

-35°C ~ +85°C

MTBF

6000000 times

Traffic Flow Appication

24 hours uninterrupted operation

Max Motor Power

150W

Max Motor Speed

36r/min

Max Torque

240N.m



Vehicle Barrier Gate Warranty and Service Items

  • Free service is oFFered for component parts in one year warranty time.

(not includes the barrier boom or remote)

  • Lifetime service with charge accordingly.

  • Technical questions are supported.



Vehicle Barrier Gate Packing List

Name

Specification

Quantity

Unit

Application

Screw, Nuts, Flat Pad

M12*70

2

sets

Fixing the boom

Boom Fixing Bar



1

pcs

Fixing the boom

Boom Holder Plastic Cover



1

sets

Optional

Cabinet Fixing Bar



2

pcs

Fixing the boom

Expansion Screws

M16*150

4

sets

Fixing the boom

Support Post



1

pcs

Optional

Radio Emitter



1

pcs

Optional

Keys



2

pcs

For cabinet door

Remote Controller



2

pcs



Manual



1

pcs





Vehicle Barrier Gate Applications:

  • station

  • highway toll gate

  • high-grade residential area

  • commercial parking lots

  • enterprises and institutions

  • commercial Plaza



Maintenance

  1. Keep the barrier gate clean.

  2. Check the joints ever month in case of any loose parts.

  3. Check the balance status of spring after the barrier gate running 1 million times; change new springs after running 3 million times, to avoid spring breaking due to excessive fatigue.



WEJOIN's Main Advantages

  1. Global leading company for barrier gate

  2. Master of core technology and innovation

  3. Intelligent quality manufacturing process and automatic flexible production

  4. Global advanced manufacturing process and testing equipment

  5. Servo,variable frequency,double speed,bi-direction motor and other leading technique

  6. High speed and low speed coexist in motor

  7. Intergral service network covering fist-tier and second-tier cities,and more under construction service network



FAQ

Q1: What is your main products?

A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.

Q2: Are you manufacturer? Do you provide ODM / OEM service?

A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.

Q3: I would like to ask if this is with RFID card reader and controller?

A: Yes, there is a controller, our barrier gate can connect with RFID card reader.

Q4: What boom types of your barrier gate?

A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm ,etc

Q5: What is your MOQ?

A: Any quantity is acceptable.

Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?

A: Please Click here and send your inquiry, then we will send you the price and details in time.

Q7: How about payment option?

A: 30% by T/T, 70% by T/T before delivery.

Q8: Do you have a model that can be used outdoors without further shelter?

A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.

Q9: How much warranty time do you have?

A: Whithin one years, if any problems, we will offer the accessories.

Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?

A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.
