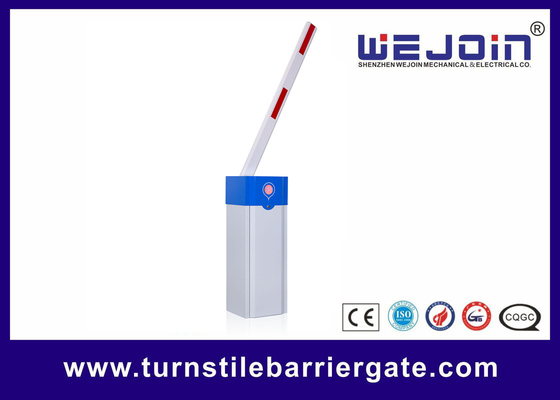

RS485 Car Park Boom Parking Barrier Gate Automatic IP54 For Parking Lot System

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: CB01SV
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton
Delivery Time: 12 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Contact Now
Detail Information
Boom Type: Straight Boom Voltage: AC 110V Or 220V
Application: Parking Lot Speed: 1-2s/3-5s Speed Adjustable
Usage: Parking Lots/toll Gate/highway Warranty: 1 Year

Product Description

RS485 Car Park Boom Automatic Barrier Gate For Parking Lot System



Vehicle Barrier Gate Quick Detail:

The technology is applied to drive motor of electric vehicle and spindle motor of CNC lathe.

# Strong moment, high precision control, low temperature rise

# Standard traffic lights

# 1-2s/3-5s speed adjustable

# gold, black and orange color optional



Vehicle Barrier Gate Brief Introduction:

This is our newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operate more steadily and more reliably. This product is highlighted in frequency applications and longer lifetime.



Vehicle Barrier Gate Applications:

  • station

  • highway toll gate

  • high-grade residential area

  • commercial parking lots

  • enterprises and institutions

  • commercial Plaza



Vehicle Barrier Gate Mechanism Structure

RS485 Car Park Boom Parking Barrier Gate Automatic IP54 For Parking Lot System



Vehicle Barrier Gate Functions & Features

1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power conaumption, high efficiency and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display, displays more information.
10). NO/NC wire control signal input are optional.
11). Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.



Vehicle Barrier Gate Technical Data

Model

WJCB01SV-H

WJCB01SV-I

Running Speed

1/1.5/2S

3/4/5S

5S

5S

5S

5S

Boom Type

Straight

Straight

90° Folding

180° Folding

2 Fence

3 Fence

Max Boom Length

3.5M~4.5M

4.5M~6M

5M

4M

4.5M

4M

Input Voltage

AC220V±10%, AC110V±10%

Frequency

50/60HZ

Motor Voltage

DC310V

Enclosure Rating

IP54

Working Temperature

-35°C ~ +85°C

MTBF

6000000 times

Traffic Flow Appication

24 hours uninterrupted operation

Max Motor Power

150W

Max Motor Speed

36r/min

Max Torque

240N.m



Vehicle Barrier Gate Warranty and Service Items

  • Free service is oFFered for component parts in one year warranty time.

(not includes the barrier boom or remote)

  • Lifetime service with charge accordingly.

  • Technical questions are supported.
