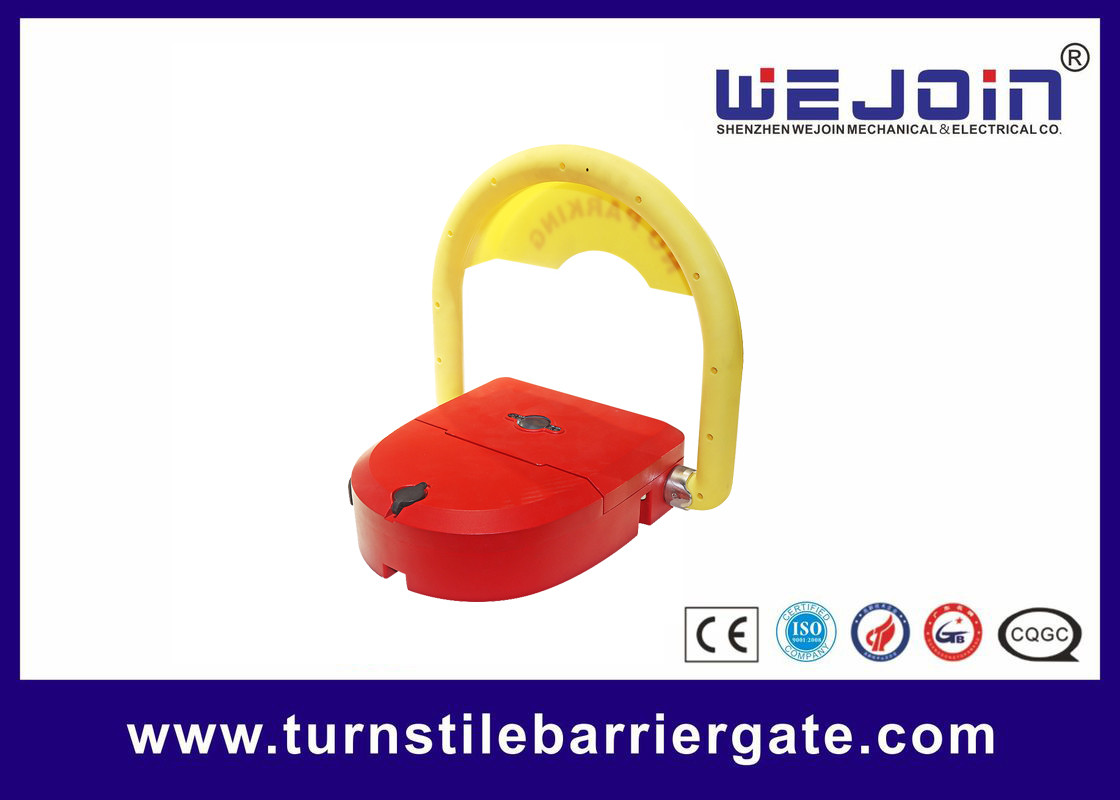

Aluminum Material Parking Lot Lock , Parking Space Blocker 5 Tons Max Bearing Weight

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJCS101
Minimum Order Quantity: 1 SET
Price: USD 150-200 SET
Payment Terms: Western Union, T/T
Contact Now
Detail Information
Current: 0.4A Material: Aluminum
Running Time: 4~6s Dimension: 357*370*82.5mm
Warranty: 12 Months Type: Remote Control Automatic Car Parking Space Lock

Product Description

Automatic Remote Control Smart Car Parking Space Blocker


Vehicle Parking Lock
1. Energy-saving
2. Safe & Hermetic
3. Intelligent self re-positioning
4. Noise-free & Burglarproof


Vehicle Park Lock Technical Specification

Standard Voltage: DC12V

Battery Voltage: DC12V, 7Ah

Dimension: 357*370*82.5MM

Operational Current: 0.4A

Up to Down Time: 4~6 Seconds

Vertical Position Height: 340MM

Horizontal Position Height: 82.5MM

Remote Control Distance: 15M

Working Temperature: -35°c~+55°c degree centigrade

Maximum Bearing Weight: 5 tons

Protection Grade: IP68


Vehicle Parking Lock Description:

Remote control parking lock is a kind of device which can be automated lift, the role is to prevent someone else take your own car parking spaces, let your vehicle and park at your parking lock at any time.

1. Energy-saving; the battery is a best product in China.

Using The United States Champion brand battery, with resistant shock, resistant high temperature, small size, good charge and discharge performance characteristics, theorily can be recharged 5000 times. Most energy-using efficient design patterns to achieve the industry's lowest operating current host 0.4A, starting current 0.6A ~ 0.7A, standby current of 0.6mA, thus ensuring once charging using at least once a year.

2. Safe: the power connection is anti-disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy.

3. Durable: the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.

4. Hermetic: the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.

5. Auto-repositioning: the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontal

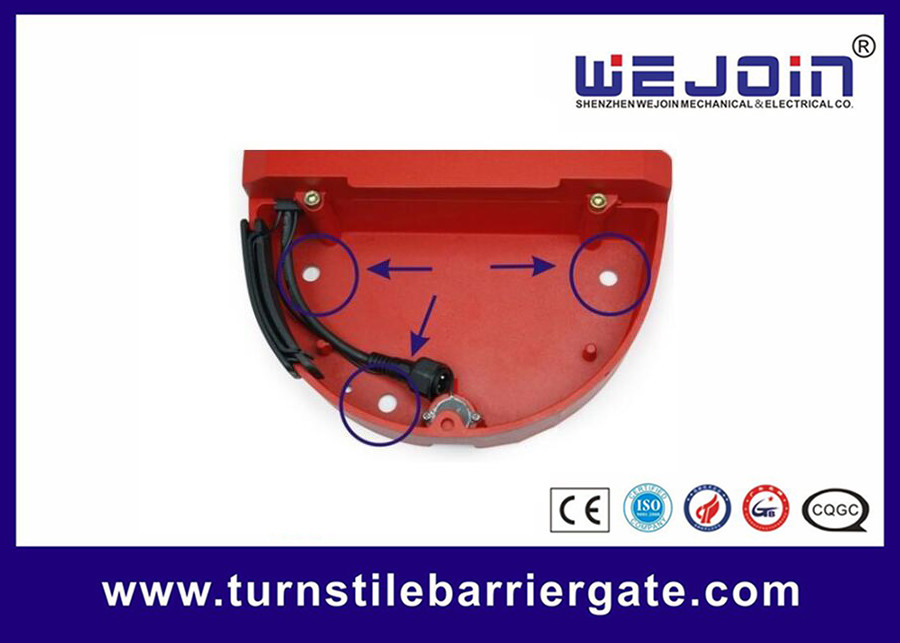

Fixing by Four expansion screws, using internal security design, and the installation location of the host expansion screws inside the shell, only with a key to open the back cover before installation, eliminating the theft risks when parking lock installed outdoors
