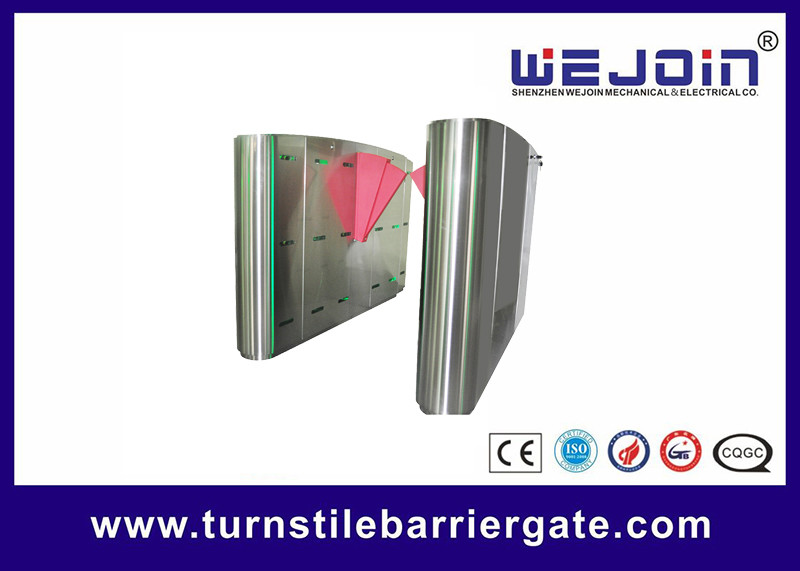

300mm Arm Length Retractable Flap Barrier Adjustable Auto Delay Closing Easy To Use

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJTY401
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 20-25 days
Payment Terms: T/T, Western Union
Supply Ability: 50pcs/week
Contact Now
Detail Information
Arm Length: 300mm Lane Wideth: 600mm
Wing Material: PVC Motor: DC12V
Protection Grade: IP32 Battery Needed: Yes

Product Description

Easy use flap barrier turnstile gate for africa markets fast speed



Product Introduction
Intelligent flap barrier is a brand-new product of WEJOIN Company It has features of precise craftsmanship, comprehensive functions and high reliability. This machine is suitable to be used in places like high class communities, office buildings, hotels, subway stations, gym and so on Unique structure with drive shaft system make it reliable and maintenance free (no need regular gear clutch structure). When power failure, the door will close automatically without accumulator.



Functions and Features

1. A compact electro-mechanical design with unique drive and a self-lock mechanism (no need regular gear clutch structure).

2. Automatic detection for malfunctions.

3. Input interface available for dry contact and switch signal connection.

4. Adjustable auto-delay closing

5. Infrared photocells for safety access

6. Alarm for unauthorized access and no access against passenger flow

7. Anti-reverse passing

8. Auto-closing when power on

9. Auto-open and free access when power off

10. Adjustable access directions.

11. No battery is needed.

12. Emergency interface available.

13. Traffic light indicating passenger access.



Specifications
1. Mechanism dimension: 282*286*875mm

    Case dimension: 1715*315*1020mm
2. Flap length: 440mm
3. Maximum lane: 900mm
4. Motor material: steel and aluminum alloy
    Voltage: AC220V ±10% , 50/60 Hz
    AC110v ±10% , 50/60Hz
5. DC 24V , brush motor
6. Dry contact interface
7. Flow speed: 30-40 people per minute
8. Opening / closing time: 0.5s-1s
9. Time for reset when powered on: 2s
10. Protection grade: Ip32
11. Working environment: indoor and outdoors with shelter, -25 ºC~+50 ºC
