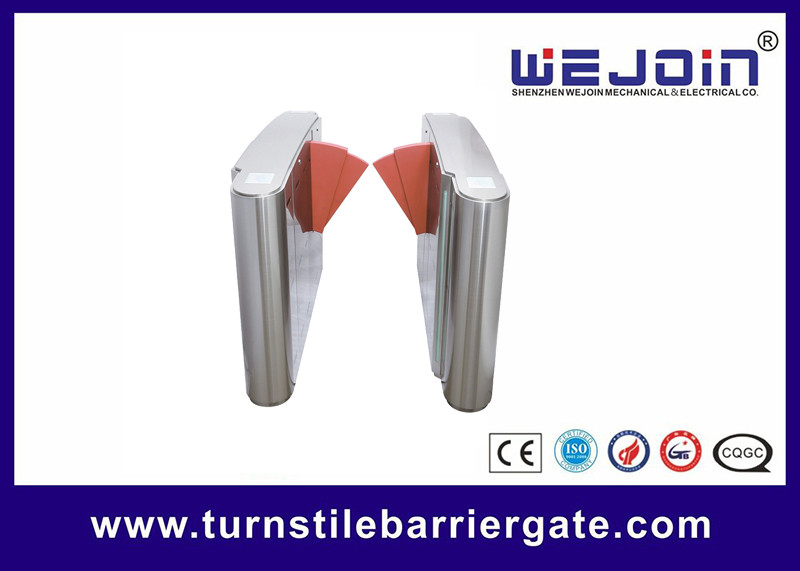

Pedestrian Across High Speed Flap Barrier Gate With Comprehensive Functions

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJTY401
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 20-25 days
Payment Terms: T/T, Western Union
Supply Ability: 50pcs/week
Contact Now
Detail Information
Lane Width: 900mm Wing Material: PVC
Motor: DC 24V Protection Grade: IP32
Battery Needed: Yes Material: 304 Stainless Steel

Product Description

pedestrian across high speed gate flap barrier access control systems



Product Introduction

Intelligent flap barrier is a brand-new product of WEJOIN Company It has features of precise craftsmanship, comprehensive functions and high reliability.

The flap barrier consists of left machine core and right machine core The machine core is classified into singe core and double core, left core and right core, and core for normal lane (600mm)or widened lane(900mm).



Common Malfunctions and Solutions

1. Power supply is connected, but parts of the system or the whole system is power off.
A. The 220V AC power socket is not connected well.
B. The power output terminal and control board is not connected .
C. The fuse on the control board is broken.

2. The gate shows no reaction with a open signal.
A. The open indicator light on the control board does not receives the signal.
B. The open signal lines is not connected well.
C. The fuse 5A is burned.

3. Giving the open signal, one machine can open, but the other one can not.
A. the connection lines between these two machines are not connected well.
B. plugs on the control board is not connected well.



Technical Data

Material of Housing

304 Stainless Steel

Material of Flap Door

Organic Glass , Resin, or PVC

Thickness of Housing

1.50mm

Width of passage

600 mm & 900 mm

Power supply

220V±10% , 110V±10%

Frequency

50/60 Hz

Working voltage of motor

DC24V



Product Application

This machine is suitable to be used in places like high class communities, office buildings, hotels, subway stations, gym and so on.



Pedestrian Across High Speed Flap Barrier Gate With Comprehensive Functions
