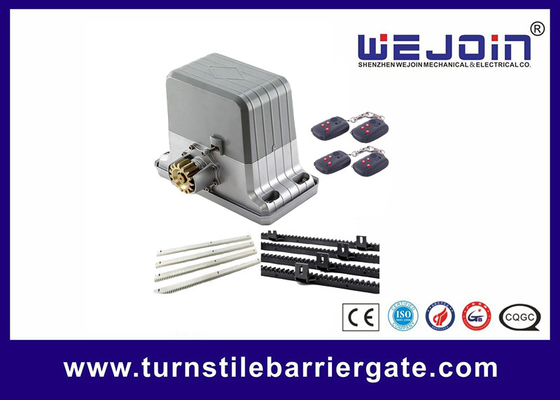

Heavy Duty Remote Sliding Gate Operator AC 220V With Built - In Thermal Protector

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: USD 150-200 SET
Packaging Details: Carton
Payment Terms: T/T, Western Union
Supply Ability: 10000 set / month
Contact Now
Detail Information
Material: Aluminum Alloy Die-cast Environment Temperature: -25°C ~ +55°C
Limit Switch: Magnetic Limit Switch Or Spring Limit Switch Voltage: 110 V
Name: Sliding Gate Operator Usage: Villa Gate

Product Description

Heavy duty remote electric automatic sliding gate motor AC 110V



There are many several features and functions for motor as follows:
1. It has the exquisite appearance,the main body of the machine,adopting high quality aluminum alloy through spray painting and die casting treatment,is firm and hard.
2. The motor is powerful,starts smoothly,has big torque and low noise,and is smooth and reliable when operating.
3. With built-in thermal protector(the motor will automatically cut off power supply for protection when the motor heat up to rated temperature)
4. The circuit has the functions of electronic infared ray collision prevention and electronic reversion when meeting obstacle so as to ensure pedestrians' safety.
5. Easy to installation is simple,easy maintence.
6. Our warrenty time is one year.



Specification of motors:

Model

WJKMP202

Voltage

220V±10%

Frequency

50HZ

Current

2.7A

Motor voltage

AC220V / 110V

Capacitor

20μf

Output Power

350W

Absorbed power

594W

Motor speed

1350rpm

Gear speed

58.5rpm

Travel speed

11m/min

Max.weight of gate

1800kg



Sliding Gate Door Opener Features
1. Soft start and soft stop
2. Emergency release key in case of power failure
3. Convenient midway mode
4. Stop/Reverse in case of obstruction during gate opening/closing.
5. Optional photocell protection
6. Built -in adjustable auto-close (0-99 seconds)
7. Digital display indicates the running situation and setting menu
8. Reliable limit switch(electromagnetism) for easy adjustment
9. Built-in max motor running time( MRT) adjustable for multiple safety protection
10.Easy to handle and low maintenance
11.24V low safety voltage with optional solar set as backup battery
12.Guarantee: Normally one year after the shipping, but our after sales service last for lifelong time.
13.Packing: Export brown carton or colorful box depend on your order item, or customized carton with your own logo (we have amount requirement on customized items, above 500pcs per item)
