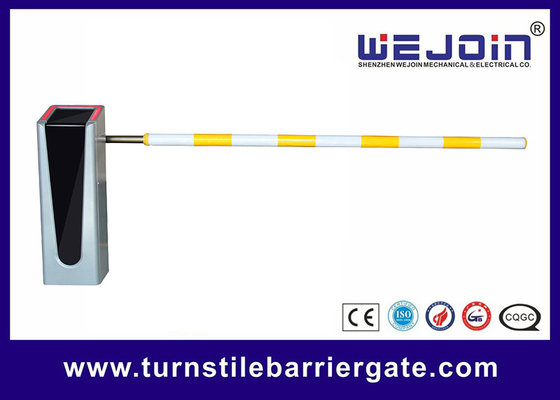

Arm Drop Automatic Parking Gate System , Parking Lot Barriers AISI304 Material

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJCB02H
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Contact Now
Detail Information
Operating Time: 0.9-5s Boom Length: Max.6m
Working Voltage: 24V Color: Flashing Sliver
Weight: 65kg Material: AISI304

Product Description

Arm Drop Automatic Parking System barrier gate for RFID parking control





Product Brief Details:

Speed is adjustable from 1s to 5s
Open/close speed is adjustable
Buffer and slow down when arm goes to limit position
Intelligent control and further customized development
Menu type control panel



Technical Data

Model

G20

Size

3meter

Material

AISI304

Arm material

Aluminum alloy

Operating time

0.9-5 seconds

Power input

AC100/220V,50/60HZ

Working voltage

24V

Working humidity

30%~95%

Working temperature

-40℃~+70℃

Working environment

Indoor

Communication interface

RS485, Dry contact



Functions and Features

1. DC permanent magnet synchronous motor (PMSM) and servo control technology.

2. The motor has the same performance as the main motor of CNC machine and electric vehicle. It has high control precision, high torque density, good torque balance, low power consumption, high efficiency and low noise.

3. Three tension spring crank transmission design for more stable and reliable structure. (Patented Technology)

4. Scientific balance design, using special material spring, for better balance and maintenance-free.

5. No limit switch design, accurate encoder detection, detecting boom position when power on.

6. Electronic clutch design, more convenient to unlock or lock the motor when power off. ( Patented Technology)

7. Safety protection device (when the boom moves to up limit position) can prevent the boom from falling in case of sudden power failure, accidental spring breakage or spring fatigue.

8. Servo control motor with lower working temperature can support 24-hour continuous operation without downtime.

9. Bi-direction boom holder design, left-installation and right-installation can be exchanged easily and quickly.

10. More sensitive and reacting faster when reversing on obstacles.
