IP54 Enclosure Rating Parking Barrier Gate Smooth Running Without Arm Shaking

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJCB02H
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Contact Now
Detail Information
Operating Time: 0.9-5s Boom Length: Max.6m
Anti-collision: Yes Structure: Special Driving Structure
Feature: Maintenance Free Application: Over-sized Traffic Flow Area

Product Description

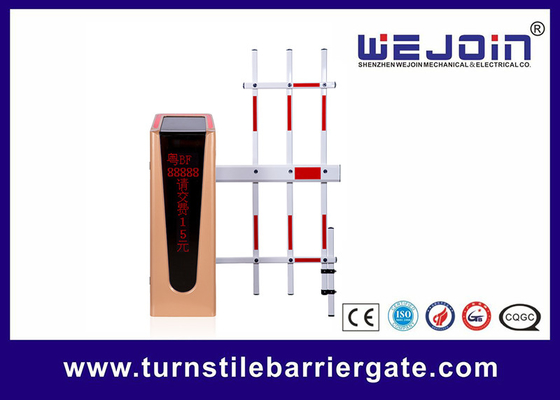

Remote control parking barrier road barrier automatic barrier gate with led





Application range:
This automatic gate barrier provides a secure and convenient solution of stopping unauthorized vehicle of giving access to authorized vechile on toll gate,or paking lots with high traffic flow such as shopping center ,exhibition center,hospitals,airports.



Product Brief Details:

Arm Drop Automatic Parking System barrier gate for RFID parking control is our typical mode of barrier gate for parking system application. This mode with strong structure, the body made by 2mmcold-rolled plate heavy duty case with IP54 protection, surface with outdoor type good quality thermos-stability spray painting. The arm support straight, fold, and fence bar for suit different application, user can open/close arm by remote control, push key and manual handle.



Functions and Features

1, Special driving structure, no gears, non-belt driving,maintenance free, high stability, longer life.
2, Special balancing structure design makes the barrier arm has the feature of slow-starting, fast-running, slow-stopping.
3, It is running without arm-shaking.
4, The brarrier arm is 90 degrees running which excluding the failure caused 360 degrees running.
5, Special low-speed aluminum housing motor integrated gearbox design, low noise, fast heat-dissipation.
6, The driving mechanism has the desiging of intelligent overheating protection system, in frequent use, it can control the warming of the motor, makes the motor not burned easily.
7, The main engine adopts mechanical limit switch and photoelectric limit switch dual protection, to avoid the problems caused by using traditional magnetic switch which is easily interfered by the external environment.
8, Barrier gae tcan be chosen from 3m to 6m.



Our Services
1. Any email will be checked in 5 minutes, any inquiry will be replied within 1 hour, and any solution will be supplied in 1 day.
2. Professional R&D team and manufacturer, supply OEM & ODM.
3. Best quality, Fashion design, reasonable & competitive price, fast lead time.
4. After-Sale Service



Technical Data

Input Voltage

AC 220V±10%, AC110V

Motor Voltage

DC310V

Enclosure Rating

IP54

Working Temperature

-35°C~+85°C

MTBF

10000000 times
