Arm Length: | 500~900mm | Power Supply: | 220V±10%, 110V±10% |
---|---|---|---|
Motor Material: | Steel And Aluminum Alloy | Motor Type: | Brush DC24V |
Relative Humidity: | ≤95% | Housing Material: | Stainless Steel 304 |
High Light: | SS304 Automatic Security Swing Barrier,3s Automatic Security Swing Barrier,220V AC Access Control Swing Barrier |

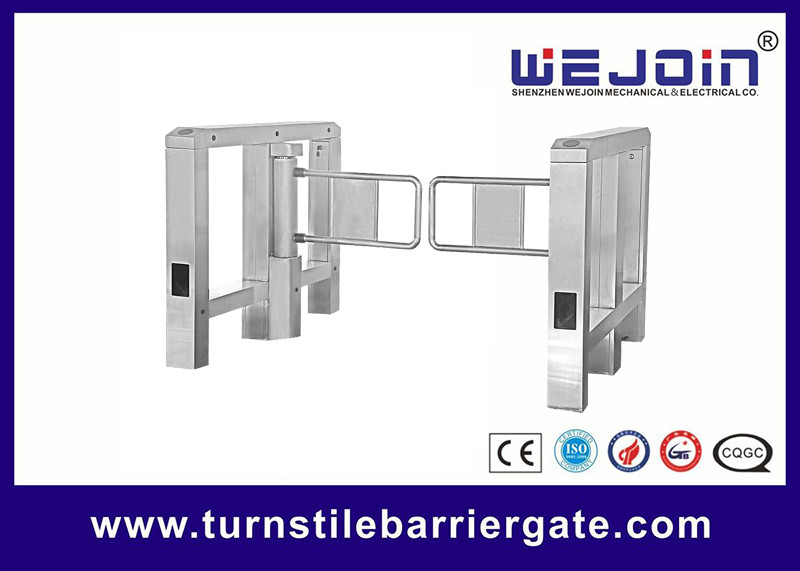

Passage access control automatic security 304 stainless steel swing barrier
Product Description
The Swing barrier has the smallest installation footprint while offering the widest opening clearance to allow big boxes, trolley, wheelchair, baby stroller, or user with big luggage to pass through with comfort.
Its compact size and tubular shape allow it to easily fit into places with very limited space. Access control and time attendance reader can be integrated into the top cover.
Its design is simplified to achieve optimum function at a more affordable cost. The Control system mechanism is modular for easy maintenance servicing and part replacement.
It is typically used together with a flap barrier or turnstile as a manual lane for the handicapped users in the building lobby. Ideal for low traffic and light duty site that requires a more affordable solution.
Parameter
Starting time after power on | 3s |
Time for Opening or Closing | 1s |
Transit Speed | 30~40 persons/min |
Working Environment | Indoor / Outdoor (Shelter) |
Working Temperature | —25°C~50°C |
Relative Humidity | ≤90%, with no condensation |
Common Malfunctions and Solutions
The power supply is connected, but parts of the system or the whole system are power off.
A.Check whether the 220V AC power socket is well connected or not.
B.Check whether the power output terminal and control board is well connected or not.
C.Check whether the fuse on the control board is broken or not.
