| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | WJDZ107 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Max Boom Length: | 3 Meters | Voltage: | 110v/220v |
|---|---|---|---|
| Motor Material: | Die-casting Aluminum Alloy | Housing Material: | Steel |
| Boom Type: | Round Foam Boom | COM Interface: | RS485 |
| High Light: | Highway Toll Station Boom Barrier Gate,RS485 Boom Barrier Gate,Steel Parking Traffic Barrier Gate |
||

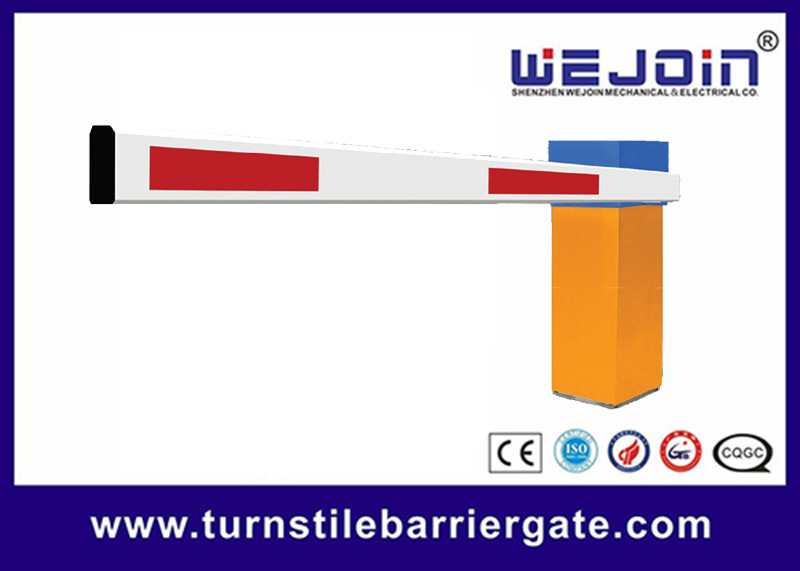

Highway Toll Station Parking Traffic Boom Intelligent Barrier Gate
Applications:
A boom gate, also known as a boom barrier, is a bar, or pole pivoted to allow the boom to block vehicular access through a controlled point. Typically the tip of a boom gate rises in a vertical arc to a near-vertical position. Boom gates have often paired either end to end, or offset appropriately to block traffic in both directions. It can be used for highway toll, parking system, factory gate, and so on.
Functions & Features:
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible
Specifications
|
Model |
WJDZ107 |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
80W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
60kgs |
|
Speed |
1S |
|
Max boom length |
3 meters |
