| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | E10 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 12 working days after payment received |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 10000 sets/month |
| Housing Color: | Yellow-green | Boom Type: | Straight Boom,fence Boom |
|---|---|---|---|
| Optional Accessories: | Loop Detector,Infrared Photocell,etc | Voltage: | AC 110V Or 220V |
| Boom Length: | Max 6M (customized) | Warranty: | 2 Year |
| High Light: | Infrared Photocell Aluminum Arm Barrier,Aluminum Arm Barrier 120W,AC 110V Entrance Barrier Gate |
||

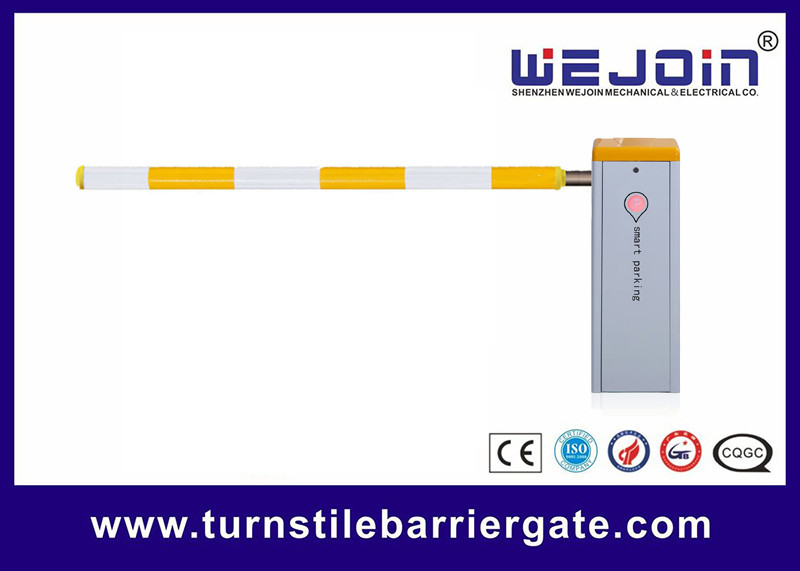

Aluminum arm barrier with optional foam padding to minimize liability
Toll Gate Technical Data
2. WorkingPower: 220V±10%, 110V±10%
3.Motor Power: 120WMAX
4.Humidity:彡90% RH
5. Distance of remote control:L>30M
6.Insulation Grade: F
7: MTBF: 3 million times
8: Max Motor Power: 120W
Spring Color Distinction
| ∅4.5 | ∅5.5 | ∅6 | ∅6.8 |
| Red | Blue | Green | Yellow |
Common Malfunctions and Solutions
Q: When power-on, press the "UP" or "DOWN" button, there is a reaction on the boom.
A: Check up the power supply and the fuse.
A: Check if the remote controller matches the radio receiver; or check-up
the battery inside and then change it if it lacks power.
A: Check whether there is co-channel interference, and press the buttons
on the control, board to check if can work.
A: Checkup if the external protection circuit is failing or in protection
status. Check up the condition of photocell and loop detector are lighting.
