Pole Type Single Pedestrian Swing Barrier Gate With Emergency Interface

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WITB101
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: wooden box
Delivery Time: 5-10 days
Payment Terms: T/T, Western Union
Supply Ability: 50PCS/week
Contact Now
Detail Information
Arm Length: 500~900mm Power Supply: 220V±10%, 110V±10%
Motor Material: Steel And Aluminum Alloy Motor Type: Brush DC24V
Relative Humidity: ≤95% Housing Material: Stainless Steel 304

Product Description

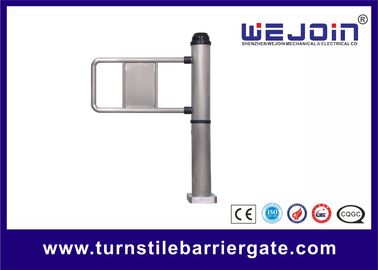

Pole Type Single Pedestrian Swing Barrier Gate With Emergency Interface



Quick Detail:

  • Name: Swing Barrier

  • Application: School,hotel,library

  • Material: Stainless steel

  • Feature: Pole-type

  • Voltage: 110V/220V

  • Certificate: CE,ISO

  • Motor type: DC24V,brush



Description:

1. WEJOIN swing barriers have a compact electro-mechanical design with unique drive which ensure product durability and silent operation and self-lock mechanism can also well protect the access control security.

2. Secondly, WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.

3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, token system etc.

4. Fourthly, WEJOIN swing barriers have auto delay closing function, Alarm for unauthorized access and no access against passenger flow.

5. Fifthly, WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.

6. Sixthly, WEJOIN swing barriers input interface available for dry contact and switch signal connection



Specifications

Model

Item

Swing Barrier Mechanism

Mechanism Dimension

108*450mm

Arm Length(Optional)

500-900mm

 Swing Direction

Single or Bidirectional Operation are Available

Voltage

220V+-15% or 110V+-15%

Driving Motor

24V Brush DC Motor

Motro Material

Steel and Aluminum Alloy

Input Interface

Dry Contact and Switch Signal Connection

 Starting time after power on

 3 seconds

Time for Opening or Closing

1 second

Transit Speed

30~40 persons/min

Working Environment

Indoor / Outdoor (Shelter)

Working Temperature

—25°C~50°C

Relative Humidity

≤90%, with no condensation



WEJOIN Profile

Its main products including high-end commercial servo barrier gate, high-end servo barrier gate, mid-end servo barrier gate, flap barrier, tripod turnstile, swing barrier, speed gate, etc., are suitable for the entry and exit management of vehicle and personnel such as high-speed toll gate, commercial plaza, residential areas, stations, customs checkpoints, etc.
