Speed Gate Systems Controlled Access Full Height Turnstile for Subway and Gateway Guard

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJFT602
Minimum Order Quantity: 1PC
Price: Negatiation
Packaging Details: Wooden box
Delivery Time: 10-15 days
Payment Terms: EXW,FOB,CIF
Supply Ability: 50PCS/Week
Detail Information
Material: 304 Stainless Steel Warranty: 1 Year
Product Name: Full Height Turnstile Type: Fully Automatic
Communication Interface: RS485 (Distance) Working Environment: Indoor/outdoor
High Light:

turnstile security systems

,

speed gate systems


Product Description

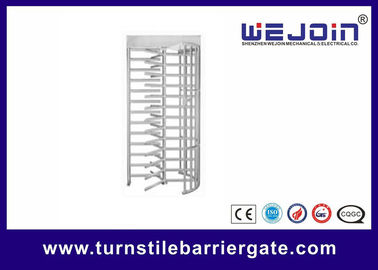

Speed Gate Systems Controlled Access Full Height Turnstile for Subway and Gateway Guard



Access Control Turnstile Gate Quick Detail:

  1. Name: Full height turnstile

  2. Timel for opening: 0.2s

  3. Material : Stainless steel

  4. Feature: Compatiable with IC, ID, magcard, bar code

  5. Voltage :110V/220V

  6. Certificate: CE,ISO

  7. Application: Residence area

Access Control Turnstile Gate Operation Place

Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control



Access Control Turnstile Gate Description:

1. Compatible with several control devices such as IC, ID, magcard, bar code and so on.

2. Anti-strike function. Turnstile gate will be locked when there is no open signal.

3. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.

4.  Memory Function attached in the controller

5. The center rotor will be set free (default) or locked (optional) automatically when the power is off.

6. Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off.

7. Counting Function of the controller, LED figure display function (optional)
8. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.
9. With standard input, output interface



Access Control Turnstile Gate Specifications

Model
Item
WJFT601 WJFT602 WJFT603 WJFT610 WJFT611 WJFT612
Material of Housing 201 / 304 Stainless Steel
Thickness of Housing 2.00mm
Dimension of Housing
(L×W×H mm)

1630×1500×2300

1400×1200×2300

1630×1500×2300

2800×1813×2400

2150×1260×2300

2210×1500×2300

Length of Pole
(out of framework)
610mm 470mm 510mm 610mm 470mm 610mm
Net Weight 170kg 250kg 230kg 650kg 560kg 650kg
Max Load-bearing of Pole 80kg 30kg 80kg 80kg 30kg 80kg
Time for Opening 0.2s
Produce Processing Laser cutting fully controlled by computer
Power Supply 220V±10%, 110V±10%
Frequency 50/60HZ
Transmission of Pole Digital Transmission
Driving Force of Pole 3kg
Rotating Direction Single Direction, Double Direction (optional)
Light Indicator Direction indicating
Communication Interface Standard RS485 (distance less than 1200 meters)
Input Interface Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V
Transit Speed 30~40 persons/min
Working Environment Indoor / Outdoor (Shelter)
Relative Humidity ≤ 90%, no condensation
Working Temperature 10°C~50°C





Speed Gate Systems Controlled Access Full Height Turnstile for Subway and Gateway Guard 0
