security parking electronic barrier gates access control led boom

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ620
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton, wooden box
Delivery Time: 1-20 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 units/week
Contact Now
Detail Information
Material: 304 Stainless Steel Warranty: 1 Year
Color: Optional Product Name: Parking Boom Barrier Gate
Power Supply: AC220V Application: Over-sized Traffic Flow Area

Product Description

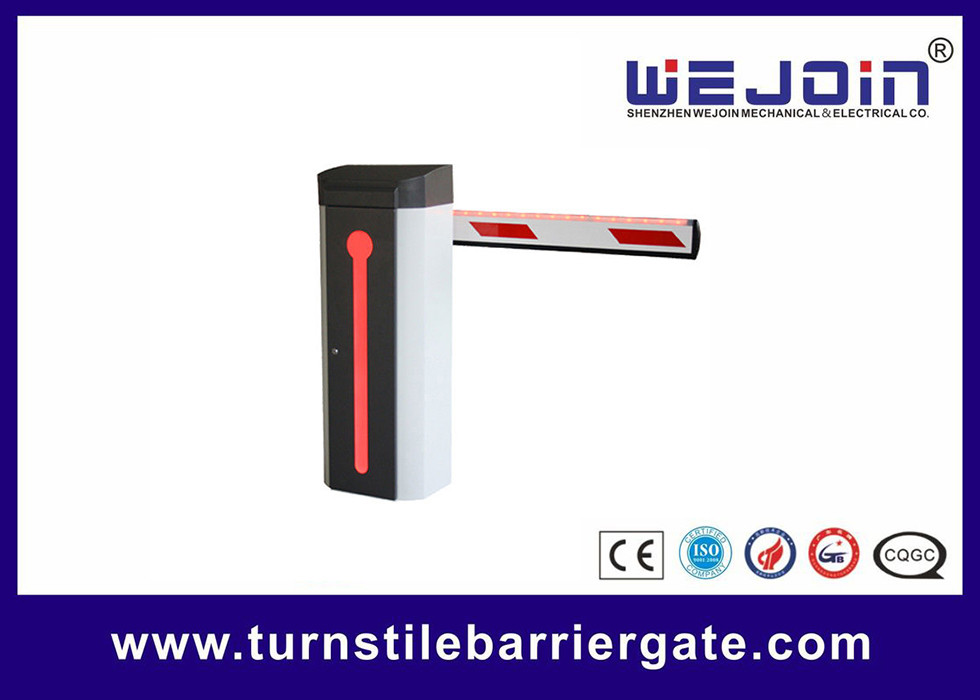

security parking electronic barrier gates access control led boom



Quick Detail:

① Name: Bi-directional Barrier Gate

② Application : Parking System

③ peed:3/6 second

④ Feature: Manual release

⑤ Rated Power:120W

⑥ Certificate:CE, ISO,

⑦ Net Weight: 45KG

⑧ Voltage: AC220V, AC110V



Description:

Model Selection and Differences

Model

Item

WJDZ62013

WJDZ62016

Opening Time

3S

6S

Boom Type

Straight, square-shaped

Boom Length

3M

4M

Voltage

110V/220V

Motor/Power

AC/120W

Working Temperature

-35℃ - 75℃

Protection Grade

IP44

Remote Control Distance

30M~100M



Functions & Features:

1. Advanced manual release
2. Boom can rise and fall on left/right side by setting on the same machine
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch
13. Boom with LED light (color is changeable with remote control)
14. Cabinet with traffic light
15. Remote Control Frequency: 315MHz, 418MHz, 433MHz

Applications:

Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.



Specifications

Model

WJDZ102

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

120W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

45kgs

Speed

3S, 6S

Max boom length

6 meters
