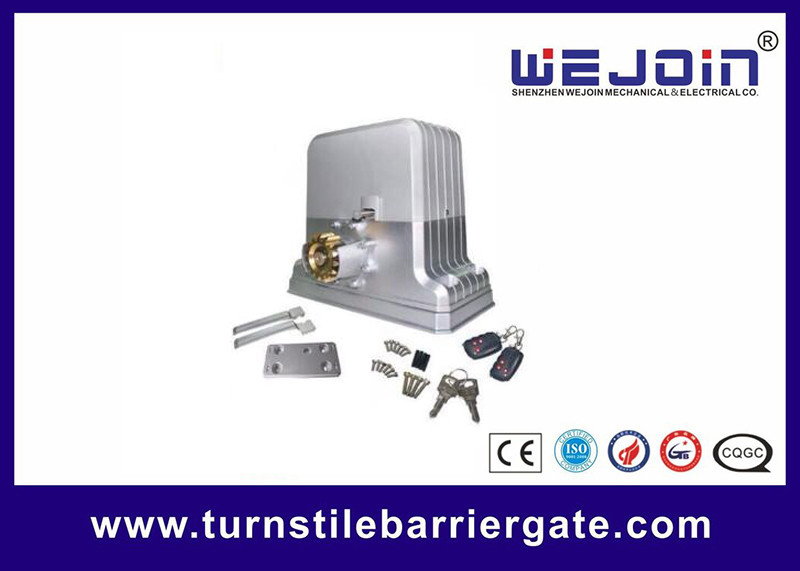

Infrared Photocell Socket Automatic Sliding Gate Opener With Alarm Light Socket

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: USD 150-200 SET
Packaging Details: Carton
Payment Terms: T/T, Western Union
Contact Now
Detail Information
Material: Aluminum Alloy Die-cast Usage: Villa Gate
Name: Sliding Gate Operator Remote Control: 418MHZ
Power: AC Protection Class: IP55

Product Description

Infrared Photocell Socket Automatic Sliding Gate Opener With Alarm Light Socket



Motor Data

Model: KMP 202

Voltage: 220V±10%, 110V±10%

Frequency: 50/60Hz

Current: 2.7A, 5.8A

Motor voltage: AC 220V/110V

Capacitor: (220V) 20µF, 60µF+14µF

Power: 350W

Torque: 35nm

Motor number: M=4

Motor speed: 1350rpm, 1620rpm

Gear speed: 58.8rpm, 70.2rpm

Travel speed: 11m/min, 13.2m/min

Working temperature: -40°c~ 55°c

Overload protection temperature: 130

Relative humidity: ≤90%

Motor making technique: die casting aluminum alloy

Manual Release: yes

Remote distance: >30m

Product weight, approx: 10.19kg, 10.25kg

Max, weight of gate: 1800kg



Electronic Data

Model

WJKMP202

Soft start

YES

Stop on obstacle

(sensitivity adjustable)

YES

Auto warming-up

(at freezing temperature)

YES

Remote control

418MHZ (50m,approx)

Wire control

Available

Auto closing

YES

Vehicle loop detector socket

YES

Photocell socket

YES

Alarm light socket

YES



Troubleshooting
I. The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.

B: Check whether the limit iron is installed right. Adjust the position of the limit iron.
4 Crash proof is not effective.
A Check whether the connection of crash proof is correct.

B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop detector is right.
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check whether it works well.
