| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO |
| Model Number: | E30 |
| Minimum Order Quantity: | 1 PCS |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 7 working day |
| Payment Terms: | T/T |
| Supply Ability: | 10000 sets/month |
| Application: | Parking Lot | Working Temperature: | -35℃~ + 80℃ |
|---|---|---|---|
| Name: | Boom Barrier Gate | Material: | 304 Stainless Steel |
| Controller Input Voltage: | DC24V±10%, 7.5A | MTBF: | 2,500,000 Times |
| Speed: | 1.5s-6s Adjustable | Power Supply Input Voltage: | AC110±10%, Or AC220V±10% |
| High Light: | Security Boom Barrier Gate,304 Stainless Steel Boom Barrier Gate,Boom Barrier Gate OEM |
||

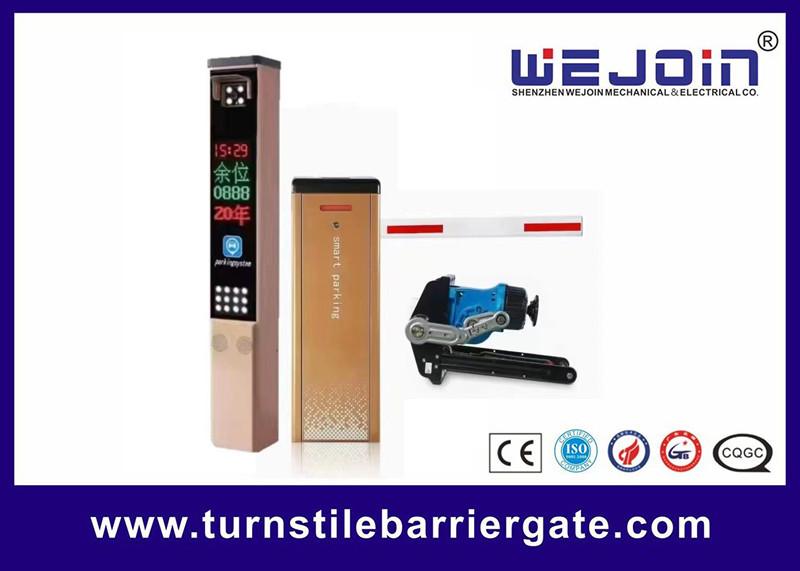

Boom Barrier Gate is an automatic barrier gate system, designed to be used in various parking lots. It is made of high quality materials and has a gold color finish. This product is characterized by its adjustable speed from 1.5s to 6s, and a wide range of working temperatures from -35℃ to +80℃. As for the power supply, it can accept input voltage of either AC110±10% or AC220V±10%. With its reliable performance, it is the ideal choice for secure access control.
The motor is driven by a connecting rod transmission mechanism that ensures maximum stability and reliability. Moreover, it also has a longevity of 2.5 million times for the motor, and a 500,000 times life for the spring. As for safety, we have incorporated an auto-reversing system for obstruction, support for external radar, loop detector, and even an infrared photocell anti-smashing device. Not to mention, there is a built-in DC 12V power output to provide power for external radar, and RS485 communication or RS485 off-line connection is also available. Besides, DC24V power supply is optional.
The motor has an effective operating temperature range between -35℃ and + 80℃. The AC power supply input voltage required is 110±10% or 220V±10%, with the controller using DC24V±10%, 7.5A. The motor's maximum power output is 180W. The environment should maintain not less than 30% (~80%) relative humidity with no condensation. The distance for use of the remote control should be at least 30M. The running speed can be adjusted between 1.5~6 seconds. The motor should have a MTBF (Mean Time Between Failure) rating of 2,500,000 times or more.
The WEJOIN E30 Boom Barrier Gate is designed for controlling the flow of vehicle and pedestrian traffic. It is made of high-quality materials and has a sturdy construction. The product is constructed with an IP54 protection rating and has a frequency of 50Hz/60Hz. It is also adjustable with a range of 1.5s-6s speed, and has a maximum MTBF of 2,500,000 times. The Boom Barrier Gate is certified with CE and ISO and can be purchased in a minimum order quantity of 1 PCS. Packaged in a carton, the product is available for delivery within 7 working days after payment is received and has a supply ability of up to 10,000 sets per month. With its reliable performance and low price, the WEJOIN E30 Boom Barrier Gate is ideal for a variety of applications, such as industrial, commercial or residential areas.
Boom Barrier Gate technical support and service includes:
To ensure that the Boom Barrier Gate arrives at its destination intact and undamaged, it is important to package and ship it correctly. The following steps will help ensure that the product is securely packaged and shipped safely:
