| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE FCC |
| Model Number: | WJCB02VF-E |
| Minimum Order Quantity: | 1 PCS |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 14 working day |
| Payment Terms: | T/T |
| Supply Ability: | 10000 sets/month |
| Size: | 405*335*1050MM | Working Temperature: | -30℃~+75℃ |
|---|---|---|---|
| Material: | Powder Coated Steel | Barrier Arm Movement: | Bi-direction |
| Control Mode: | Remote Control | Opening/Closing Time: | 0.6s-1s |
| Barrier Arm Length: | 3-4m | Communication Interface: | RS485, RJ45 |
| High Light: | Coated Steel Automatic Barrier Gate,4m Arm Automatic Barrier Gate,Bidirectional Security Barrier Gate |
||

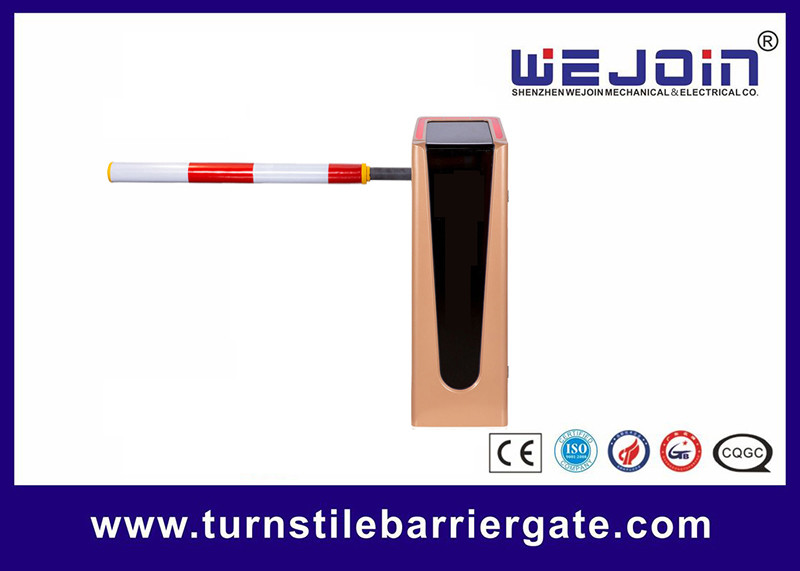

A boom barrier is a physical security device mainly used for restricting unauthorized persons or vehicles from entering a controlled environment and also for controlling traffic overflow. It consists of an arm, which comes in either a bar or pole form and raises vertically from 3m to 4m in height.
In accordance with customer specifications, the length of the arming meter may be adjusted, but the lefault timing of the barrier is 0.6 sec. Additionally, it also supports a mechanical lock for increased security as well as a signal sensor for drawing extra output power.
Our DC 24V brushless motor comes with a reliable and stable worm gear and planetary reduction transmission structure, guaranteeing a high torque and wear resistance.
Furthermore, our DC variable-frequency control system allows for more flexible running, precise control, less mechanical impact, and a longer service life.
Our product also features an Auto-reversing on Obstruction that is sensitive, responsive, and reliable. We also have a LCD screen control panel that is user friendly, with an english visual menu and a simple maintenance system.
We've added a 433MHz remote controller, which makes it simple to increase the range of controllers. Additionally, it is possible to operate the handwheel or lift the boom during power-off, either powered by a DC24V battery or opened one-time by a supercapacitor backup.
Finally, to ensure a tremendous user experience, we have included motorcade passing, counting, auto-ageing test, delay auto-closing, relay signal output, RS485 communication, loop detector, infrared photocell and radar - all of which can come optional.
And, to top it off, we offer a two year warranty period for our motor and control board.
Exploring the operational capabilities of this product, it has impressive ratings:
This product is designed with powerful and reliable characteristics to provide excellent performance. Its 100% duty cycle ensures uninterrupted operation for 24 hours and MTBF of 10 million times. It has a max motor power of 300W, max motor speed of 500r/min and max output torque of 250N.m. The enclosure rating is also rated to IP54 and it can withstand temperatures between -30℃ - +70℃.
WEJOIN Boom Barrier offers entrance security at the entrance and exit points of factories, warehouses, corporate offices, residential apartments, parking lots, toll plazas, and so on. It is designed to upgrade your security to the next level. Notably, boom barrier is particularly suitable for toll applications due to its impressive speed of up to 0.6s.
We are proud to provide High-performance Boom barriers that come in various lengths in order to cater to any installation requirement. Furthermore, this product is user-friendly, as it is equipped with manual operation in case of a power failure and battery backup. And besides these features, monitoring capabilities like infrared photocell sensor, alarm beepers, warning lamps, and more are also available.
We understand that our customers may have questions about the installation and use of Automatic Barrier Gates. Our team of experienced technicians is available to provide professional technical support and service. We are dedicated to providing the highest quality customer service and satisfaction.
We provide installation and maintenance services for Automatic Barrier Gates. Our team of experienced technicians will ensure that your barrier gate is installed and functioning properly. We also provide regular maintenance and repair services to ensure your barrier gate is working correctly and efficiently.
If you have any questions or concerns about the installation or use of your Automatic Barrier Gate, our team of experienced technicians is available to provide technical support. We are committed to providing the highest level of customer service and satisfaction.
We offer a comprehensive warranty on all Automatic Barrier Gates. In the event that your barrier gate is damaged or malfunctions, we offer repair services to restore your barrier gate to proper working condition. We are dedicated to providing the highest quality customer service and satisfaction.
The Automatic Barrier Gate is shipped to customers in sturdy cardboard boxes. The inside of the box is lined with foam to provide additional protection for the product. The product is secured to the box with foam fasteners and bubble wrap. The box is then sealed with clear packaging tape for added security.
The box is labeled with the customer's name and address, as well as the product's serial number and weight. This ensures that the product will be delivered to the right address. Once the box is sealed, it is ready to be shipped to the customer.
