| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE FCC |
| Model Number: | WJCB02VF-E |
| Minimum Order Quantity: | 1 PCS |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 14 working day |
| Payment Terms: | T/T |
| Supply Ability: | 10000 sets/month |
| Barrier Arm Type: | Carbon Fiber Round Arm | Motor: | DC Brushless Motor |
|---|---|---|---|
| Working Temperature: | -30℃~+75℃ | Protection Level: | IP54 |
| Opening/Closing Time: | 0.6s-1s | Barrier Arm Length: | 3-4m |
| Material: | Powder Coated Steel | Control Mode: | Remote Control |
| High Light: | RS485 Interface Automatic Traffic Barriers,IP54 Automatic Barrier Gate,DC24V Automatic Barrier Gate |
||

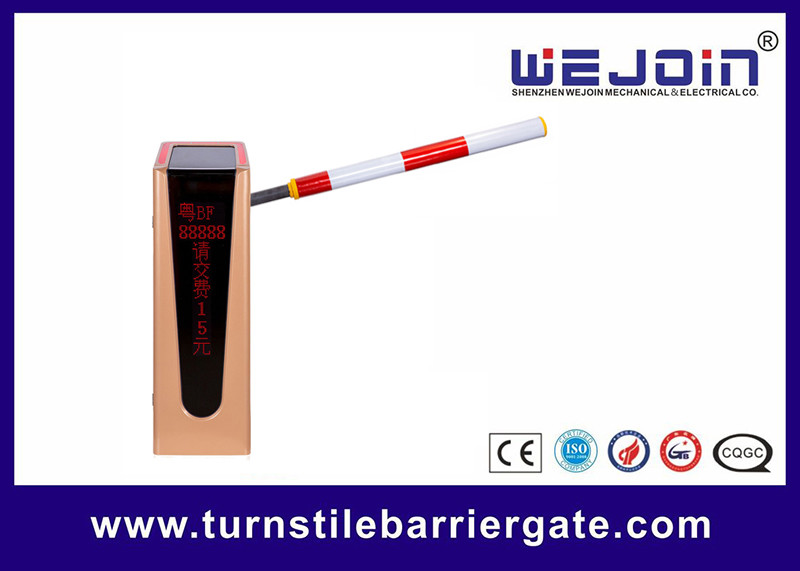

A boom barrier is mainly used to restrict unathorized persons/vehicles from entering restricted areas and prevent traffic overflow. The arm of the barrier can be of the bar or pole type, and can be raised up to a height of 3m – 4m. Depending on the customer's requirement, the arming meter of the barrier can be adjusted. The default timing of the barrier is 0.6 sec.
This motor adopts a self-developed DC24V brushless motor, equipped with a stable and reliable worm gear and planetary reduction transmission structure. It has a large torque and is highly wear-resistant. It is paired with a DC variable-frequency control system, allowing for precise control and more flexible running, resulting in less mechanical impact, and an extended service life.
Thanks to the auto-reversing feature on obstruction, the motor is highly sensitive, responsive, safer, and more reliable than before. Moreover, the large LCD screen display control panel has a visual English menu, making it simpler to maintain and operate.
It also has a 433MHZ Remote Controller, making it easier to add extra remote controllers. During power-outages, you can manually turn the handwheel or lift the boom up and down, and you can also power it by a DC24V battery or open it one time with a supercapacitor backup.
Additionally, it also supports motorcade passing, counting, auto-aging test, delay auto-closing, relay signal output, and RS485 communication, with optional features such as loop detector, infrared photocell, and radar. Last but not least, it comes with a two-year warranty for the motor and control board.
The running speed of this unit is from 0.6s to 1s.
This model's boom is made out of carbon fiber and is round in shape with lengths ranging from 3m to 4m.
The cabinet measures 405*335*1050MM.
The power supply input voltage is either AC220V ±10% or AC110V ±10% and the control board input voltage is DC24V ±10%, 10A.
The motor voltage is DC24V and its enclosure rating is IP54.
It can be safely used in environments ranging from -30℃ to +70℃.
The Mean Time Before Failure (MTBF) of this unit is 10,000,000 times, and it can function at 100% duty cycle for 24 hours uninterrupted operation.
The maximum motor power of this unit is 300W, the max motor speed is 500r/min, and the max output torque is 250N.m.
WEJOIN Boom Barrier can be installed at the entrances and exits of factories, warehouses, corporate offices, residential apartments, parking lots and toll plazas, providing enhanced security to these areas. Its flexibility and range of sizes makes it suitable for all types of applications, especially for toll booths. With an impressive speed of 0.6 seconds, users can expect fast and smooth operation.
Furthermore, our Boom barrier has manual control to operate in the event of a power failure, plus a battery backup in some models. This ensures that users can access the area even if the electricity supply fails.
At ABC Company, we offer high quality technical support and service for our Automatic Barrier Gate. Our technical support and service includes the following:
For any additional questions or inquiries regarding our Automatic Barrier Gate, please do not hesitate to contact us.
Automatic Barrier Gate Packaging and Shipping:
