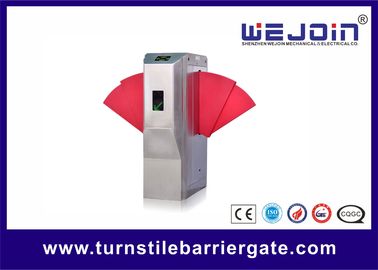

Widen Lane SS Automatic Turnstiles Flap Barrier Electro - Mechanical Design

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: ISO
Model Number: WJTY311
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: WOODEN
Delivery Time: 3-7DAYS
Payment Terms: T/T
Supply Ability: 3000 SETS
Contact Now
Detail Information
Close Opening Time: 0.5s Housing Finished: Stainless Steel
Flap Speed: Adjustable Flap Material: Oganic Glass
Infrared Photocell: Yes Customized Products: Yes
Safety: Yes Opening/closing Time: Adjustable

Product Description


Widen Lane SS Automatic Systems Turnstiles Electro - Mechanical Design


Application:

Access control barrier gates series is the core product of WEJOIN, including tripod turnstile, flap barrier, swing barrier, sliding gate turnstile and so on. The basic function of access control gates is orderly management of pedestrian access. It can be compatible with finger printer, attendance machine, ticketing system, toll system, identification system, face recognition, bar code, two dimensional code and combined with computer network, and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.



Functions and features:



1. A compact electro-mechanical design with unique drive and a self-lock mechanism
2. Automatic detection for malfunction
3. Input interface for dry contact and switch signal connection
4. Adjustable auto-delay closing
5. Infrared photocells for safety access
6. Alarm for unauthorized access and no access against passenger flow
7. Anti-reversing passing
8. Auto closing when power on
9. Auto open and free access when power off
10. Adjustable access directions
11. Emergency interface available
12. Traffic light indicating passenger access


Products Series:



                  Model
Item

WJTY201

WJTY301

WJTY311



WJTS111

Material of Housing

304 Stainless Steel



Material of Flap Door

Organic Glass, Resin, or PVC



Iron with powder

Dimension of housing

1200*270*1000

1450*315*1020

1400*305*1020



420*380*1050

Thickness of housing

1.5mm



Max Width of Passage

600

900

900



Net weight

70kg

140 kg

85 kg



45 kg

Normal Life Span

3 millions times



Communication Interface

Standard RS485(distance less than 1200 meters)



Transit speed

30-40 persons/min



Power supply

220V±10%, 110± 10%



Frequency

50/60HZ



Working voltage of motor

DC24V



Time for opening or closing

1s



Starting time after power on

3s



Input interface

Dry contact signal or +12Vor pulse signal with width more than
100ms DC12V




Transit speed

25~32 persons/min



Working temperature

-10°C~50°C



Working environment

Indoor / Outdoor (Shelter)



Relative humidity

≤95%, no condensation
