| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO, |
| Model Number: | WJDZ102 |
| Minimum Order Quantity: | 1 unit |
| Price: | negotiation |
| Packaging Details: | Carton,wooden box |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 Units / Month |
| Speed: | 1S; 1.8S; 3S; 6S | Color: | Optional |
|---|---|---|---|
| Motor Material: | Die-casting Aluminum Alloy | Housing Material: | Steel |
| Max Boom Length: | 8 Metes | COM Interface: | RS485 |
| High Light: | Infrared Photocells Manual Boom Barrier,Steel Housing Manual Boom Barrier,No Clutch Road Barrier Gate |
||

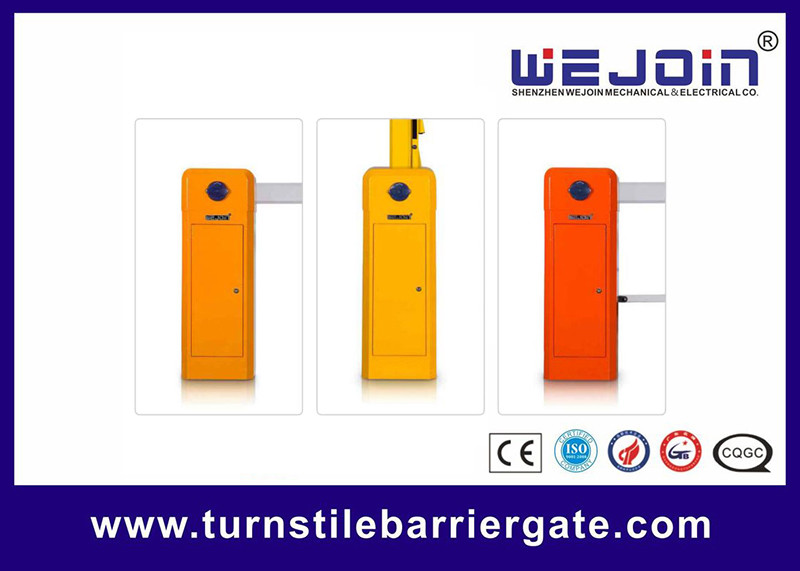

Manual boom barrier with loop detector and infrared photocells
Product information
This product uses the new mold designing technology, mold stamping, die casting technology, and no clutch designing. And the quality is more reliable. The unique clutch device and the balance device have made the barrier gate become more reliable.
Motor speed and boom type
| Boom type | Boom length (M) | Opening time(S) | Height between boom and ground(M) |
|
Straight boom |
6M≥L＞4.5M | 6S |
H=0.8M |
| 4.5M≥L＞3M | 3S | ||
| 3M≥L | 1.5S | ||
| Articulated boom, 90 degree | 5M≥L＞3M | 6S | |
| 3M≥L | 3S | ||
| Articulated boom, 180 degree | 5M≥L＞3M | 6S | |
| 3M≥L | 3S | ||
|
Fence boom, two-level |
4.5M≥L | 6S |
H=0.9M |
|
Fence boom, three-level |
4M≥L | 6S | H=1.5M |
Product series and data
DZ-1XX/A --slow speed straight boom
Boom length L≤4.5m
Operating time: 6s
Center vertical high: 0.83m
Functions & Features:
1. Auto-reverse when the boom meets an obstruction
2. Infrared photocells connector is available
3. Loop detector connector is available
4. Well-integrated with car parking system equipment, with wire control (must be switch signal)
5. Connector for a traffic light (AC220V, power less than 40W)
6. Offering dry contact signal for car parking system (COM, NC, NO)
