ac control board sliding door motor with gear rack and pinion

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Carton
Payment Terms: T/T, Western Union
Supply Ability: 10000 set / month
Contact Now
Detail Information
Material: Aluminum Usage: Villa Gate
Function: Driving Remote Control: 418MHZ
Protection Class: IP55 Certification: CCC

Product Description

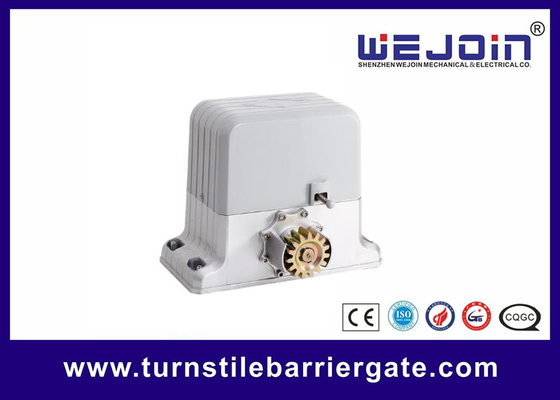

ac control board sliding door motor with gear rack and pinion



Overview

This is a conventional sliding gate operator, with brand-new design, brand-new clutch structure, fashionable exterior design and brand-new control technique, making the motor more humanistic.



Motor Data

Model

WJKMP202

Voltage

220V±10%

110V±10%

Frequency

50HZ

60HZ

Current

2.7A

5.8A

Motor voltage

AC220V / 110V

Capacitor

20μf

60μf +14μf

Output Power

350W

Absorbed power

594W

638W

Torque

35nm

Mode number

M=4



Electronic Data

Soft start: YES

Stop on obstacle (sensitivity adjustable): YES

Auto warming-up (at freezing temperature): YES

Remote control: 418MHz (50m, approx)

Wire control: Available

Auto closing: YES

Vehicle loop detector socket: YES

Photocell socket: YES

Alarm light socket: YES



Notice
1) The working voltage is 10% of the rated voltage, use power regulator if in area of volatile supply voltage.

2) The gear modulus: M=4 Gear scalar: Z=15. Please use the correspondent rack.
3) The gate should be balanceable and level. So the gear and rack can fix well.
4) The gap between gears should be fi gate operator can move smoothly.
5) The rail should be embedded right. The wheel of the gate should be right and installed well. These are key points for the gate running well. Adjust the bolts which can make the gate operator up or down to make the gear fit the rack well. Make sure that the gate can be moved by an adult when the clutch is opened.
6) Make sure the running direction of the gate operator. The limit iron should be fixed at the right position, otherwise limit doesn't work and then the motor will be stocked and out of control.



Service Item
1. One year maintenance services provided free of charge
2. Life-long repairing with charge offered11.

3. Technical support
