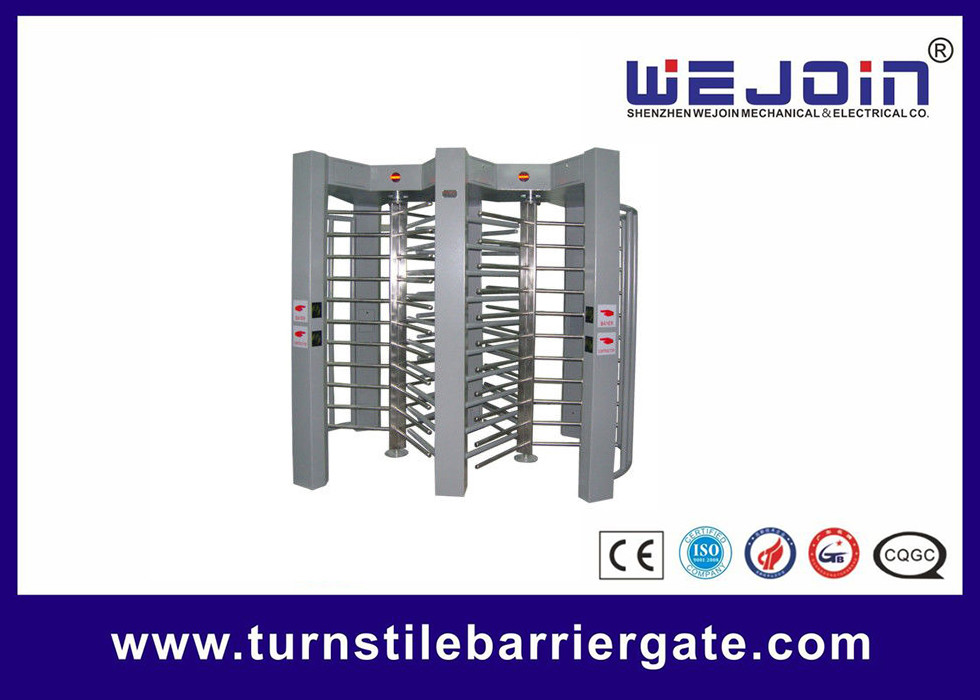

Automatic Systems Turnstiles pedestrian gate access control with Auto lock
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control
1 Counting Function of the controller, LED figure display function (optional)
2. Anti-strike function. Turnstile gate will be locked when there is no open signal.
3. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.
4. The complete stainless steel construction is suited for interior or exterior application.
5. The center rotor will be set free (default) or locked (optional) automatically when the power is off.
6. Compatible with several control devices such as IC, ID, magcard, bar code and so on.
7. Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off
8. The turnstile can also work with push button, fingerprint and face recognition access control system.
9. The full-high turnstile is designed to combine the functions of two single rotor turnstiles into one turnstile.
10. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.
|Material of Housing||201 / 304 Stainless Steel|
|Thickness of Housing||2.00mm|
|Dimension of Housing
|Length of Pole
(out of framework)
|Max Load-bearing of Pole||80kg||30kg||80kg||80kg||30kg||80kg|
|Communication Interface||Standard RS485 (D<=1200 m)|
|Produce Processing||Laser cutting fully controlled by computer|
|Input Interface||Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V|
|Transmission of Pole||Digital Transmission|
|Driving Force of Pole||3kgs|
|Rotating Direction||Single/Double Direction (optional)|
|Light Indicator||Direction indicating|
|Power Supply||220V±10%, 110V±10%|
|Time for Opening||0.2 s|
|Transit Speed||30~40 person per minute|
|Working Environment||Indoor / Outdoor (Shelter)|
|Relative Humidity||≤ 90%, no condensation|
