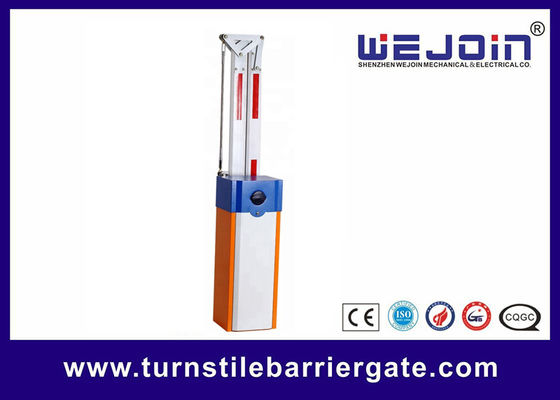

Bi - directional access control Electronic car park automatic gate barrier

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ120
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton, wooden box
Delivery Time: 1-20 days
Payment Terms: T/T, Western Union
Supply Ability: 5000 units/week
Detail Information
Type: Automatic Barrier Opeating Time: 3s,6s
Boom Length: 3m,4m Motor Material: Die-casted Aluminium Alloy
Traffic Light: Yes Auto-delay: Yes
High Light:

automatic car park barriers

,

automatic parking barrier


Product Description

Bi - directional access control Electronic car park automatic gate barrier





Electronic Barrier Gates Quick Detail:

① Name: Bi-directional Barrier Gate

② Application : Parking System

③ peed:3/6 second

④ Feature: Manual release

⑤ Rated Power:120W

⑥ Certificate:CE, ISO,

⑦ Net Weight: 45KG

⑧ Voltage: AC220V, AC110V



Electronic Barrier Gates Description:

Model Selection and Differences

Model

Item

WJDZ12013

WJDZ12016

Opening Time

3S

6S

Boom Type

Straight, square-shaped

Boom Length

3M

4M

Voltage

110V/220V

Motor/Power

AC/120W

Working Temperature

-35℃ - 75℃

Protection Grade

IP44

Remote Control Distance

30M~100M



Electronic Barrier Gates Functions & Features:

1. Advanced manual release
2. Boom can rise and fall on left/right side by setting on the same machine
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch

13. Boom with LED light (color is changeable with remote control)

14. Cabinet with traffic light

15. Remote Control Frequency: 315MHz, 418MHz, 433MHz



Electronic Barrier Gates Applications:

Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.



Electronic Barrier Gates Specifications

Model

WJDZ102

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

120W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

45kgs

Speed

3S, 6S

Max boom length

6 meters



Why to choose WEJOIN Bi-directional Barrier Gate?

1. Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.

2. Barrier Gate with LED boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

3. Special barrier core makes its installation direction adjustable. Also he barrier works well with the barrier can be changed booms with different length, without changing its spring. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.

4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.



Communication with customers

Q: What's WEJOIN monthly production capacity for barrier gate?

A: 10000 units.

Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.

Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
