| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | CB01SV |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 12 working days after payment received |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Boom Type: | Straight Boom | Housing Color: | White And Blue |
|---|---|---|---|
| Application: | Parking Lot | Speed: | 1-2s/3-5s Speed Adjustable |
| Boom Length: | Max 6m (customized) | Arm Material: | Aluminum Alloy |
| High Light: | Stainless Steel Housing Parking Barrier Gate,Speed Adjustable Parking Barrier Gate,5S Vehicle Barrier Gates |
||

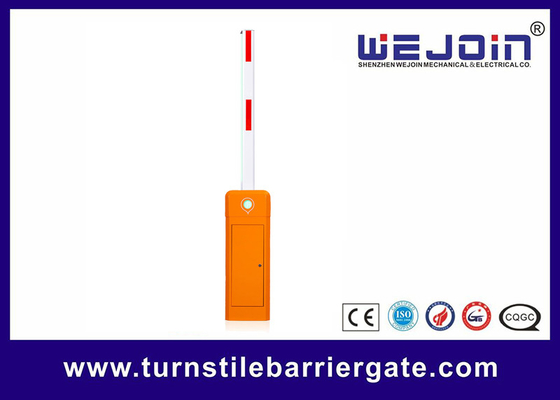

Rust-resistant stainless steel housing parking barrier arm gate
CB01SV Series Boom Length and Speed Selection
|
Model |
CB01SV-I (3-5S) |
|||
|
Boom-Type |
90° Folding Boom |
180° Folding Boom |
||
|
Boom Length |
≤3M |
≤5M |
≤3M |
≤4M |
|
Running Speed |
3/4/5S |
5S |
3/4/5S |
5S |
Boom Barrier Brief Introduction
1. Innovative motor hand-wheel lock design: lift up the boom by hand when power off, pull the motor hand-wheel lock to lock the barrier; release the motor hand-wheel lock to run when power-on.
2.No limit switch design: the motor can detect the boom position automatically.
3. Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4. Self-detect after power-on, open/close speed is adjustable.
5. With auto-reversing on obstruction function.
6. Infrared photocell interface is available,(need to install photocell device).
7. Loop detector interface is available, to avoid hitting the vehicle, and control the boom falling down automatically after vehicle passing,(need to install loop detector)
8. Built-in counting function, can store the times of opening signal, deduct the times when vehicle passing the loop, boom falling down after vehicle passing through, well improve the traffic efficiency.
9. Built-in delay auto-closing function, coordinated with counting function, if the numbers of the vehicle passed less than the stored numbers, the boom will fall down automatically by countdown but will be new count down if there is up or loop detector signal.
10. Integrated RS485 communication interface, to realize control of barrier open/close by computer and barrier status query.
WEJOIN's Main Advantages
1. The global leading company for barrier gate
2. Master of core technology and innovation
3. The intelligent quality manufacturing process and automatic flexible production
4. The global advanced manufacturing process and testing equipment
5. Servo, variable frequency, double speed,bi-direction motor, and other leading technique
6. High speed and low speed coexist in motor
7. Integral service network covering first-tier and second-tier cities, and more under the construction service network
