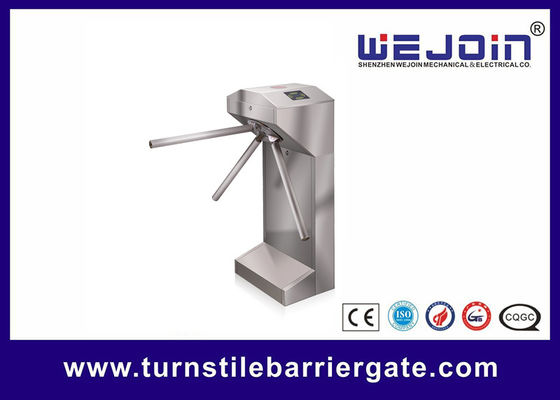

Security access control entrance barrier gate tripod turnstile
Turnstile Barrier Gate Applications:
Tripod turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to provide intelligent control and management to flow control. This turnstile series is made of 304 stainless steel, which is rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit. It can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community, enterprises, and institutions that need intelligent access management.
Turnstile Barrier Gate Technical Parameters
|
Item |
WJAT211 |
|
Material of housing |
304 Stainless steel |
|
Dimension of Housing |
420*330*980mm |
|
Length of Pole(out of the housing) |
490mm |
|
Net Weight |
50KG |
|
Power Supply |
AC220V±10%,50HZ;AC110V±10%,60HZ |
|
Working Voltage of motor |
DC12V |
|
Rated Power |
50W |
|
Transit speed |
25-32 persons/min |
|
Working Temperature |
-25℃~+55°C |
|
Relative humidity |
<95%, no condensation |
Turnstile Barrier Gate Functions& Features
1). The exquisite rotating plate and self-lock mechanism
2). Bi-directional pass/any single direction pass(adjustable)
3). Arm auto-drop when power off and manual rise up when power on
4). Self-lock within 5 seconds
5). Avoid unauthorized access
6). Counter output
7). Fire alarm emergency signal output
8). Input interfaces available for left access (L), right access(R), emergency (EM), END
Turnstile Barrier Gate After-sale Service:
1-year warranty
Lifetime Service with charge accordingly
