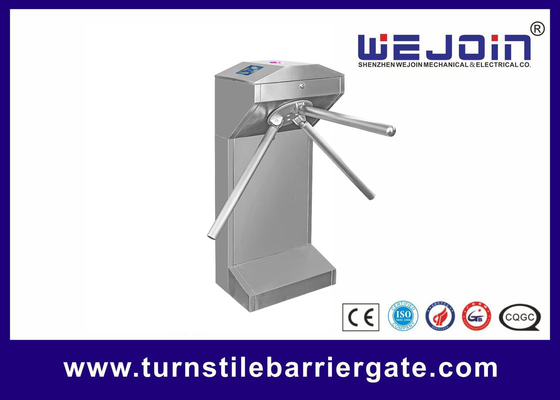

Automatic Tripod Turnstile
Functions& Features:
1). Exquisite rotating plate and self-lock mechanism.
2). Bi-directional pass/any single direction pass(adjustable).
3). Arm auto-drop when power off and manual rise up when power on.
4). Self-lock within 5 seconds.
5). Avoid unauthorized access.
6). Counter output.
7). Fire alarm emergency signal output.
8). Input interfaces available for left access (L), right access(R), emergency (EM), GND.
Technical Parameters:
| Item | WJAT211 |
| Material of housing | 304 Stainless steel |
| Dimension of Housing | 420*330*980mm |
| Length of Pole(out of housing) | 490mm |
| Net Weight | 50KG |
| Max load-bearing of pole | 3kg |
| Power Supply | AC220V±10%,50HZ;AC110V±10%,60HZ |
| Working Voltage of motor | DC12V |
| Rated Power | 50W |
| Driving Motor | Brush dc motor |
| Input Interface |
DC 12V electrical level signal, more than 1oms, or DC 12V impulse signal |
| Transit speed | 25-32 persons/min |
| Working Temperature | -25℃C~+55°C |
| Working environment | Indoor/ Outdoor |
| Relative humidity | <95%, no condensation |
Applications:
The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.
After-sale Service:
FAQ
Q1: What is your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you manufacturer? Do you provide ODM / OEM service?
A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.
Q3: I would like to ask if this is with Mifare reader and controller?
A: Yes, there is a controller, our turnstile has control board, can connect with Mifare reader.
Q4: Can we buy this product and grant acess to the user via cell phone app/bar code? What access point options does it come with? Card? Token?
A: Yes, you can connect the turnstile with bar code reader, and other customized access controller.
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?
A: Please send your inquiry, then we will send you the price and details in time.
Q7: How about payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Whithin one years, if any problems, we will offer the accessories.
Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?
A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
