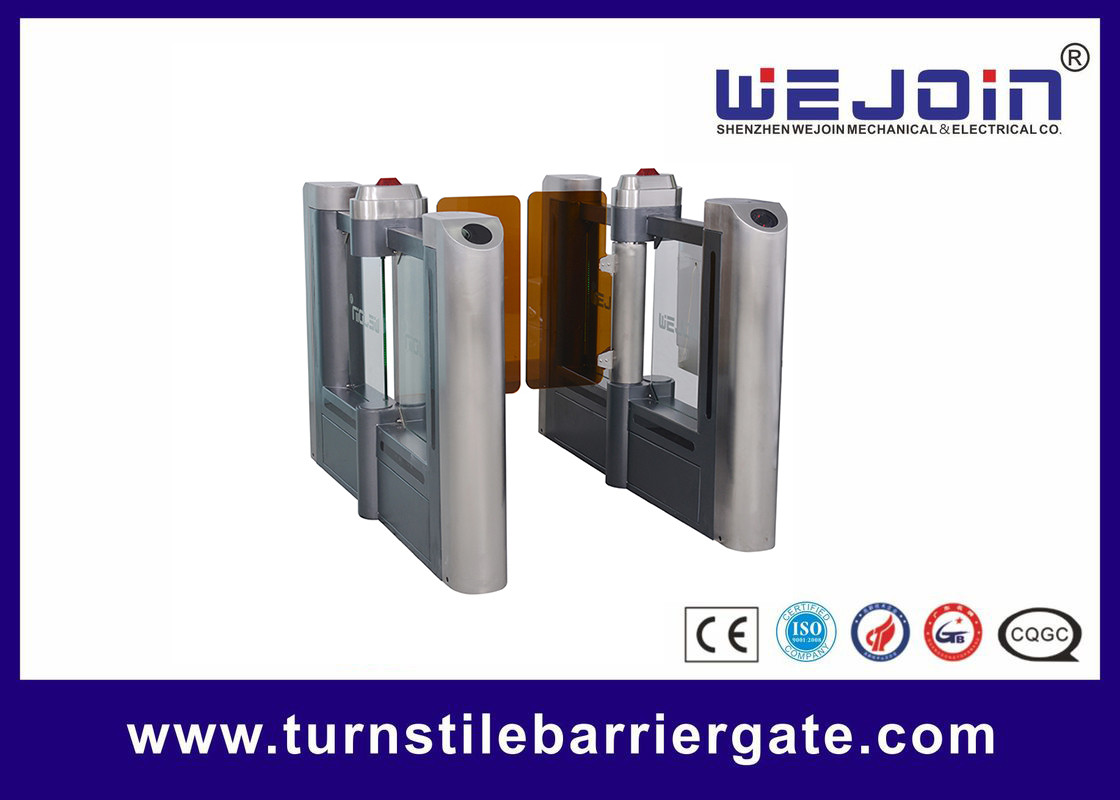

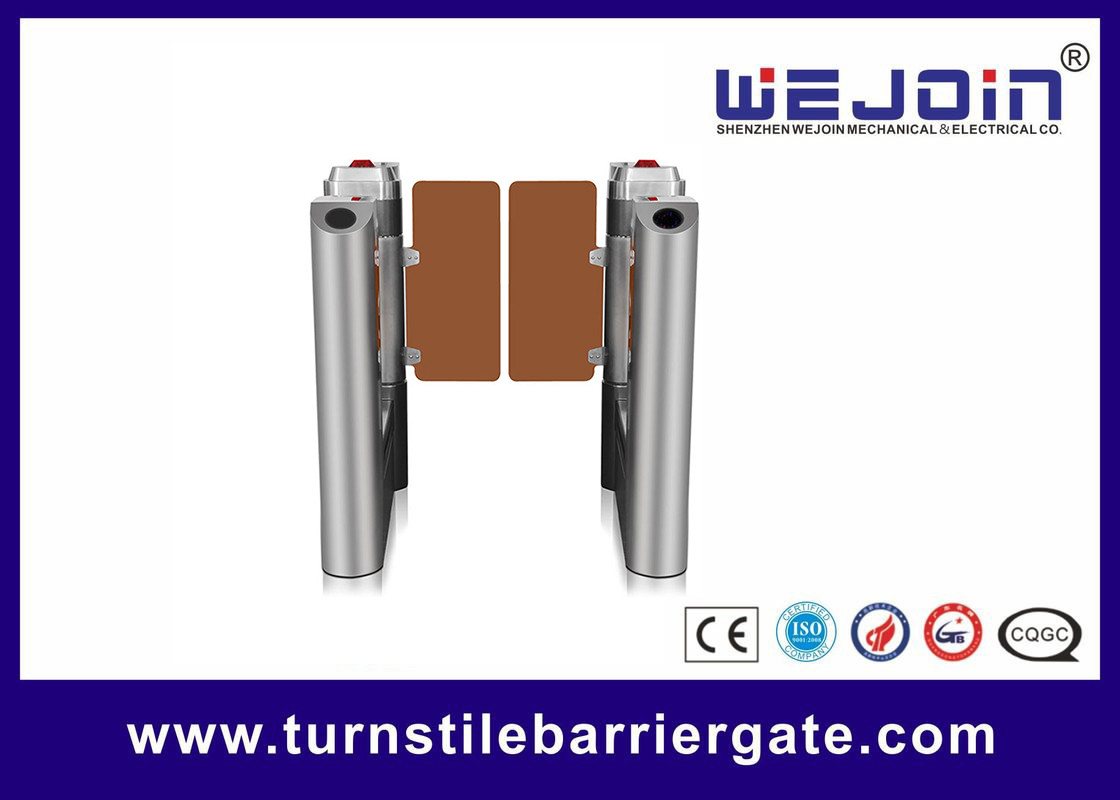

Supermarket Single Swing Barrier Gate Entrance Access Control System

    • Supermarket Single Swing Barrier Gate Entrance Access Control System
    • Supermarket Single Swing Barrier Gate Entrance Access Control System
  • Supermarket Single Swing Barrier Gate Entrance Access Control System

    Product Details:

    Place of Origin: China
    Brand Name: WEJOIN
    Certification: CE, ISO,
    Model Number: WJTB201

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: negotiation
    Packaging Details: wooden box
    Delivery Time: 5-10 days
    Payment Terms: T/T
    Supply Ability: 150pcs/week
    Contact Now
    Detailed Product Description
    Housing Material: 304 Stainless Steel Width Length: 500MM--900MM
    Standard Package: Wooden Package Leading Time: 3-5 Working Days After Payment Being Received
    Protection Grade: IP32 Relative Humidity: ≤95%

    Supermarket Single Entrance Swing Gate Swing Barrier Gate


    Quick Detail:


    • Name: Swing Barrier gate
    • Application: Business buliding
    • Material: Stainless steel
    • Feature: Adjustable access directions
    • Voltage: 110V/220V
    • Certificate: CE,ISO
    • Flow speed:30-40 people per minute
    • Opening time:1s
    • Arm length:500~900mm



    Description:


    1. WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.

    2. Secondly, WEJOIN swing barriers have a compact electro-mechanical design with unique drive which ensure product durability and silent operation, and its self-lock mechanism can also well protect the access control security.

    3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, token system etc.

    4. Fourthly, WEJOIN swing barriers have auto delay closing function, after the flaps open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-delay closing time is adjustable.

    5. Fifthly, WEJOIN swing barriers Alarm for unauthorized access and no accee against passenger flow

    6. Sixthly, WEJOIN swing barriers can be integrated with traffic light indicating passenger access




    Quick Detail


    • Model:WJTB101
    • Application:Access control System
    • Housing Material: Stainless Steel
    • Feature: Compatible with IC/ID/bar code,etc
    • Voltage:AC110V/220V
    • Certificate:ISO,SGS

    Specifications

                                         Model Item


    Swing Barrier Mechanism

    Mechanism Dimension

    108*450mm

    Arm Length(Optional)

    500-900mm

    Motor Material

    Steel and Aluminum Alloy

    Driving Motor

    24V Brush DC Motor

    Swing Direction

    Single or Bidirectional Operation are Available

    Input Interface

    Dry Contact and Switch Signal Connection

    Time for Opening or Closing

    1 second

    Starting time after power on

    3 seconds

    Transit Speed

    30~40 persons/min

    Working Environment

    Indoor / Outdoor (Shelter)

    Working Temperature

    —25°C~50°C

    Relative Humidity

    ≤90%, no condensation



    Vertical Automatic Swing Gate with 304 Stainless Steel , Anti - bumping Function




    Feature and Function

    1.A compact electric and mechanical design with unique drive which ensure product durability and silent
    operation, and its self-lock mechanism can also well protect the access control security.


    2.Automatic detection for malfunctions, which will be convenient for customer to maintain and operate.

    3. Input interface which are available for dry contact and switch signal connections. So customers can
    integrate the swing barrier with different system, like card reader, ticket system, token system etc.



    4.Auto delay closing function, after the flaps open if no pedestrian passes in a fixed time, the system will cancel
     the order and the auto-delay closing time is adjustable.


    5.Audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.


    6.It can be integrated with fire control device, which allow the release on emergency for security consideration.

    Supermarket Single Swing Barrier Gate Entrance Access Control SystemSupermarket Single Swing Barrier Gate Entrance Access Control System




    Certificates

    Supermarket Single Swing Barrier Gate Entrance Access Control System



    Company and Factory


    Supermarket Single Swing Barrier Gate Entrance Access Control System
