Intelligent 220V Motor Automatic Barrier Gate with 6m Boom Length and 1 Second Speed for High Security Parking Lot

1 unit
MOQ
US $440-$540.00 / Units
Price
Intelligent 220V Motor Automatic Barrier Gate with 6m Boom Length and 1 Second Speed for High Security Parking Lot
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Orange
Application: Parking Lot
Boom Length: Max.6m
Operating Temperature: -40℃-75℃
Running Time: 1 Sec , 3 Sec , 6 Sec
Motor Voltage: 220V
Highlight:

manual barrier gate

,

car barrier gate
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ102
Payment & Shipping Terms
Packaging Details: Carton, wooden box
Delivery Time: 1-20 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 units / month
Trade Terms: EXW, FOB, CIF
Product Description
Intelligent Automatic High Security Gate Barrier For Parking Lot
Intelligent Automatic High Security Gate Barrier For Parking Lot
Quick Specifications
Name: High Speed Barrier Gate
Application: Highway toll
Certificate: CE, ISO
Net Weight: 60KG
Voltage: AC220V, AC110V
Rated Power: 80W
Speed: 1 second
Feature: Manual release
Applications
Fast Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs at high speed but stably with a running time of 1 second. It can be used for highway toll, parking system, factory gate, and similar applications.
Model Selection Guide
Model Boom Shape Max Boom Length Speed
WJDZ10116
WJDZ10216		 Straight boom 6m 6 seconds
WJDZ10113
WJDZ10213		 Straight boom 4.5m 3 seconds
WJDZ10111
WJDZ10211		 Straight boom 3m 1 second
WJDZ10126
WJDZ10226		 90 degree, Articulated boom 5m 6 seconds
WJDZ10123
WJDZ10223		 90 degree, Articulated boom 3m 3 seconds
WJDZ10136
WJDZ10236		 180 degree, Articulated boom 5m 6 seconds
WJDZ10133
WJDZ10233		 180 degree, Articulated boom 3m 3 seconds
WJDZ10146
WJDZ10246		 Two-level, fence boom 4.5m 6 seconds
WJDZ10156
WJDZ10256		 Three level, fence boom 4m 6 seconds
Technical Specifications
Parameter Specification
Model WJDZ101, WJDZ102
Working Temperature -40℃～+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 60kgs
Speed 1S
Max boom length 3 meters
Functions & Features
  • Manual release
  • Machine core with compression spring, effectively avoids accidents caused by spring breaking
  • Die-casting aluminum alloy motor, precision engineered with excellent thermal radiating
  • Motor cooling fan, solving heat-protection problems
  • Double safety limit switches (photoelectricity limit switch/motor memory sensor)
  • Reversing on obstacle detection
  • Auto-closing function
  • Support for Infrared Photocell for anti-bumping function (optional)
  • Support for external and internal Vehicle Loop Detector
  • Traffic light interface
  • Wire Control (switch signal) / remote control (418 HZ/433 HZ)
  • RS485 Communication module (optional)
Why Choose WEJOIN High Speed Barrier Gate?
  • High Speed Barrier Gate adopts special machine core, swing away boom holder and boom for high-speed, stable operation with 1-second running time, ideal for highway toll applications
  • Swing away boom holder design protects the barrier core and prolongs lifetime - boom detaches from holder when hit
  • First generation motor provides stable performance and long service life (3 million cycles), with galvanized steel housing (1.5mm thickness) suitable for indoor and outdoor use
  • Special barrier core with aluminum alloy casting, automatic reverse when boom meets obstruction, compatible with infrared photocells and loop detectors, manual release for power failure operation
  • WEJOIN has sub-companies for accessory production and processing, offering both standard production and OEM services
Customer Communication
What's WEJOIN monthly production capacity for barrier gate?
10000 units.
As for the over-heating problem of barrier gate
WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there're shutters on the housing to let wind in.
Sometimes, Why the barrier boom would open automatically?
Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
What's the remote control distance?
In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
Product Preview

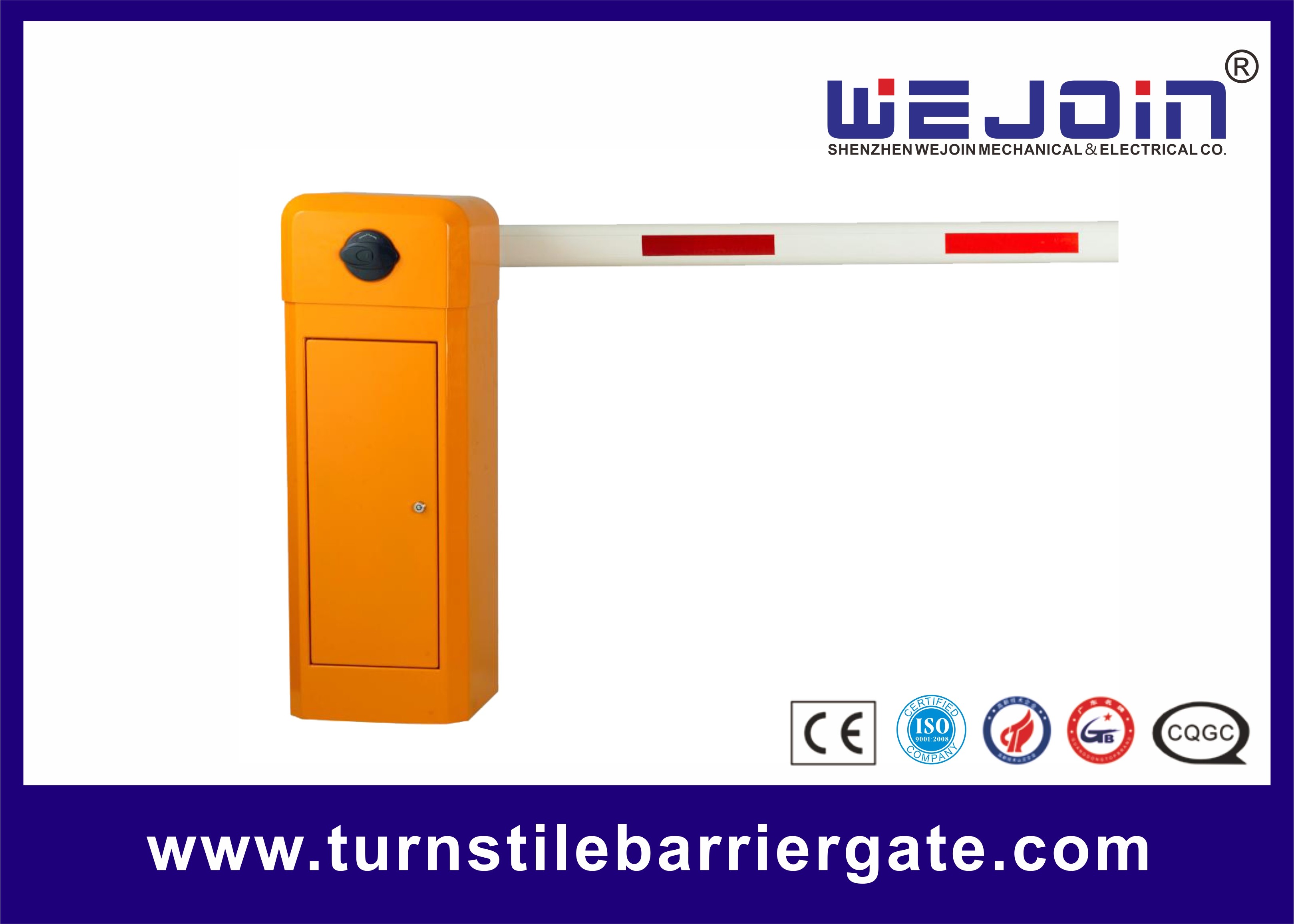

WEJOIN High Speed Barrier Gate product image showing industrial gate barrier design
