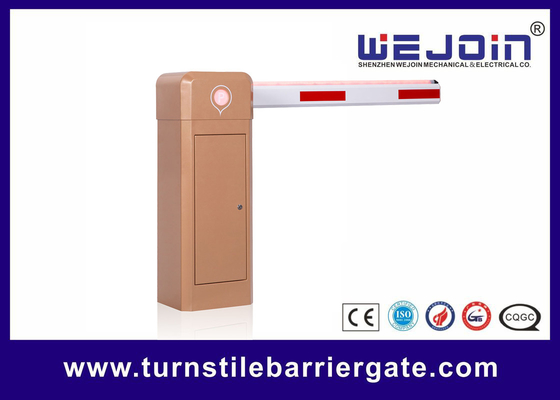

Automatic CE Boom Barrier Gate with vehicle loop detector for parking system

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: CB01SV
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton
Delivery Time: 12 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Boom Type: Straight Boom Housing Color: Orange
Application: Parking Lot Speed: 1-2s/3-5s Speed Adjustable
Boom Length: Max 6M (customized) Arm Material: Aluminum Alloy

Product Description

Automatic CE Boom Barrier Gate with vehicle loop detector for parking system



Vehicle Barrier Gate Quick Detail:

The technology is applied to drive the motor of electric vehicle and spindle motor of CNC lathe.

# Strong moment, high precision control, low-temperature rise

# Standard traffic lights

# 1-2s/3-5s speed adjustable

# gold, black and orange color optional



Vehicle Barrier Gate Brief Introduction:

This is our newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operates more steadily and more reliably. This product is highlighted in frequency applications and longer lifetime.


Vehicle Barrier Gate Functions & Features
1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for a more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display displays more information.
10). NO/NC wire control signal input is optional.
11). Integrated RS485 communication, infrared photocell, and loop detector interface. RJ45 network, loop detector, and radar module can be added.

Vehicle Barrier Gate Technical Data
Model WJCB01SV-H WJCB01SV-I
Running Speed 1/1.5/2S 3/4/5S 5S 5S 5S 5S
Boom-Type Straight Straight 90° Folding 180° Folding 2 Fence 3 Fence
Max Boom Length 3.5M~4.5M 4.5M~6M 5M 4M 4.5M 4M
Input Voltage AC220V±10%, AC110V±10%
Frequency 50/60HZ
Motor Voltage DC310V
Enclosure Rating IP54
Working Temperature -35°C ~ +85°C
MTBF 6000000 times
Traffic Flow Application 24 hours of uninterrupted operation
Max Motor Power 150W
Max Motor Speed 36r/min
Max Torque 240N.m



Mechanism Structure

Automatic CE Boom Barrier Gate with vehicle loop detector for parking system 0
