Home /Products/Car Park Barrier Gate/120W Straight Boom Barrier Gate with 3~5s Rising Arm and Max 6M Boom Length for Parking Solutions

120W Straight Boom Barrier Gate with 3~5s Rising Arm and Max 6M Boom Length for Parking Solutions

1 set
MOQ
negotiation
Price
120W Straight Boom Barrier Gate with 3~5s Rising Arm and Max 6M Boom Length for Parking Solutions
Features Gallery Product Description Request A Quote
Features
Specifications
Boom Type: Straight Boom
Voltage: AC 110V Or 220V
Boom Length: Max 6M (customized)
Warranty: 2 Year
Housing Color: Yellow-green
Application: Parking Solution
Highlight:

5s Rising Arm Barrier Gate

,

Straight Boom Arm Barrier Gate

,

120W Fence Car Parking Gate
Basic Infomation
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: E10
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 12 working days after payment received
Payment Terms: T/T,Western Union
Supply Ability: 10000 sets/month
Product Description

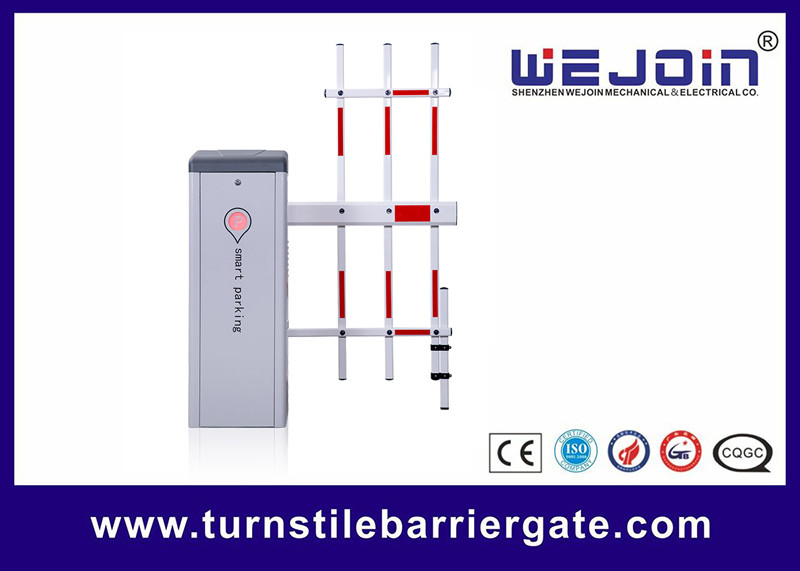

Straight Boom 3~5s Rising Arm Barrier Gate 120W With Fence
Rising arm barrier gate with fence boom speed 3~5s adjustable for parking system
Intelligent Barrier Parameters
Input Voltage AC220V±10%, AC110V±10%
Frequency 50/60HZ
Motor Voltage DC310V
Enclosure Rating IP54
Working Temperature -35°C~+85°C
MTBF 3 million times
Max Motor Power 120W
Max Motor Speed 24r/min
Max Torque 240N.m
Key Features
  • Boom Swing-off Protection: Protects both boom and vehicle - boom swings off 90 degrees if hit by a vehicle. Optional swing-off module can be easily added to existing barriers.
  • 56 Hours Aging Test: All barriers undergo 56-hour aging test with automatic open/close cycles every 10 seconds without hanging boom. Ensures quality and fast lead time.
Frequently Asked Questions
Q: What's WEJOIN's monthly production capacity for the barrier gate?
A: 10000 units.
Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has a motor cooling fan that can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have a motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there're shutters on the housing to let the wind in.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is in the right position; if not, please adjust the Limit Switch. Please refer to the last page of the Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What's the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using a remote control within 30 meters or 50 meters.
WEJOIN Straight Boom Rising Arm Barrier Gate with Fence - Industrial parking system barrier
