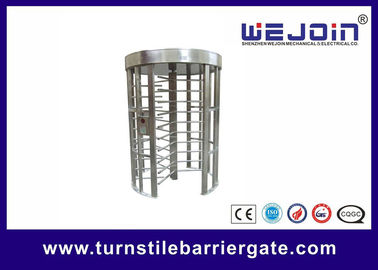

Stainless steel full height turnstile for access control

Detail Information
High Light:

turnstile security systems


speed gate systems

Product Description


Stainless steel full height turnstile for access control



Quick Detail:


Name:Full height turnstile

Application:Access control


Material :Stainless steel

Feature:Compatiable with IC, ID, magcard, bar code

Voltage :110V/220V




Operation Place

Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control


1. Compatible with several control devices such as IC, ID, magcard, bar code and so on.

2. Unlocking is quick and reliable.

3. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.

4. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.

5. The center rotor will be set free (default) or locked (optional) automatically when the power is off.

6. Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off.

7. Counting Function of the controller, LED figure display function (optional)
8. Memory Function attached in the controller
9. With standard input, output interface





Model WJFT601 WJFT602 WJFT603 WJFT610 WJFT611 WJFT612
Material of Housing 201 / 304 Stainless Steel
Thickness of Housing 2.00mm
Dimension of Housing 1630×1500×2300 1400×1200×2300 1630×1500×2300 2800×1813×2400 2150×1260×2300 2210×1500×2300
(L×W×H mm)
Length of Pole 610mm 470mm 510mm 610mm 470mm 610mm
(out of framework)
Net Weight 170kg 250kg 230kg 650kg 560kg 650kg
Max Load-bearing of Pole 80kg 30kg 80kg 80kg 30kg 80kg
Driving Force of Pole 3kg
Produce Processing Laser cutting fully controlled by computer
Power Supply 220V±10%, 110V±10%
Frequency 50/60HZ
Transmission of Pole Digital Transmission
Light Indicator Direction indicating
Rotating Direction Single Direction, Double Direction (optional)
Time for Opening 0.2 second
Communication Interface Standard RS485 (distance less than 1200 meters)
Input Interface Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V
Transit Speed 30~40 persons/min
Working Environment Indoor / Outdoor (Shelter)
Working Temperature 10°C~50°C
Relative Humidity ≤90%, no condensation

Stainless steel full height turnstile for access control 0
