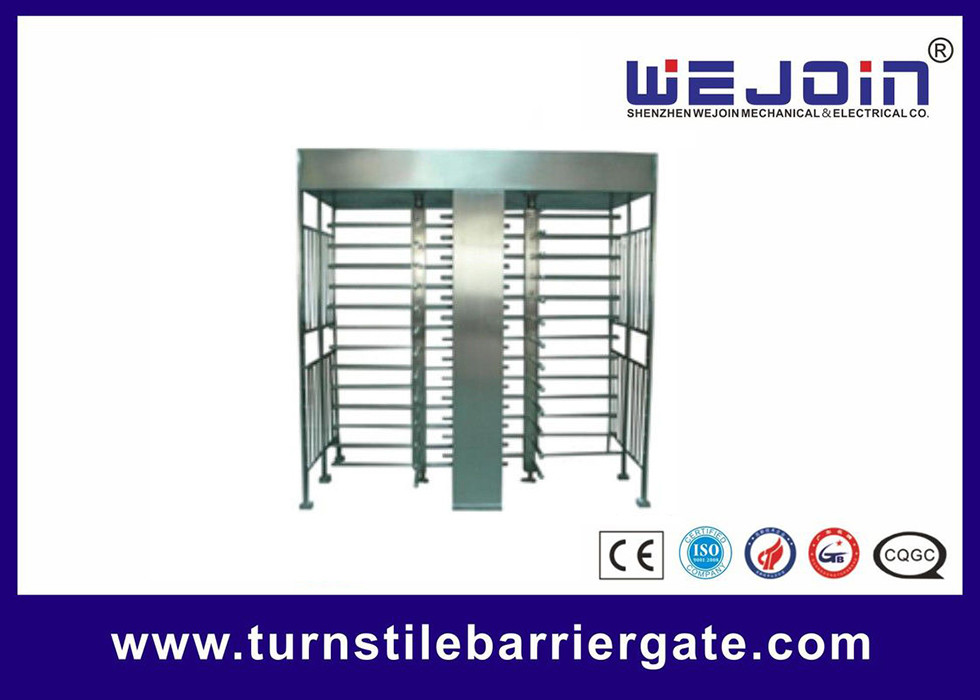

Full Height Access Control Turnstile Gate for IC , ID , magcard ,bar code

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJFT601
Minimum Order Quantity: 1PC
Price: Negatiation
Packaging Details: Wooden box
Delivery Time: 10-15 days
Payment Terms: EXW,FOB,CIF
Supply Ability: 50PCS/Week
Detail Information
Warranty: 1 Year Material: 304 Stainless Steel
Working Environment: Indoor Outdoor Communication: RS485 Or TCP/IP
Transit Speed: 25~32 Persons / Min Voltage: AC220V ± 10%
High Light:

pedestrian gate access control


turnstile security systems

Product Description

Full Height Access Control Turnstile Gate for IC, ID, mag card, bar code


Quick Detail

  1. Name: Full-height turnstile
  2. Application: Access control
  3. Material: Stainless steel
  4. Feature: Compatible with IC, ID, mag card, bar code
  5. Voltage: 110V/220V
  6. Certificate: CE, ISO


Operation Place
Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise’s Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control


1.Compatible with several control devices such as IC, ID, mag card, bar code, and so on.
2.Unlocking is quick and reliable.
3. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.
4. Automatically reset function: It will automatically lock if the pedestrian hasn't passed through the channel in the pre-set time after the opening. The passing time is adjustable.
5. The center rotor will be set free (default) or locked (optional) automatically when the power is off.
6. Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote-controlled whether the power is on or off.
7. Counting Function of the controller, LED figure display function (optional)
8. Memory Function attached in the controller
9. With standard input, output interface



Material of Housing 201 / 304 Stainless Steel
Thickness of Housing 2.00mm
Dimension of Housing
(L×W×H mm)













Length of Pole
(out of framework)
610mm 470mm 510mm 610mm 470mm 610mm
Net Weight 170kg 250kg 230kg 650kg 560kg 650kg
Max Load-bearing of Pole 80kg 30kg 80kg 80kg 30kg 80kg
Driving Force of Pole 3kg
Produce Processing Laser cutting fully controlled by computer
Power Supply 220V±10%, 110V±10%
Frequency 50/60HZ
Transmission of Pole Digital Transmission
Light Indicator Direction indicating
Rotating Direction Single Direction, Double Direction (optional)
Time for Opening 0.2 second
Communication Interface Standard RS485 (distance less than 1200 meters)
Input Interface Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V
Transit Speed 30~40 persons/min
Working Environment Indoor / Outdoor (Shelter)
Working Temperature 10°C~50°C
Relative Humidity ≤90%, no condensation
