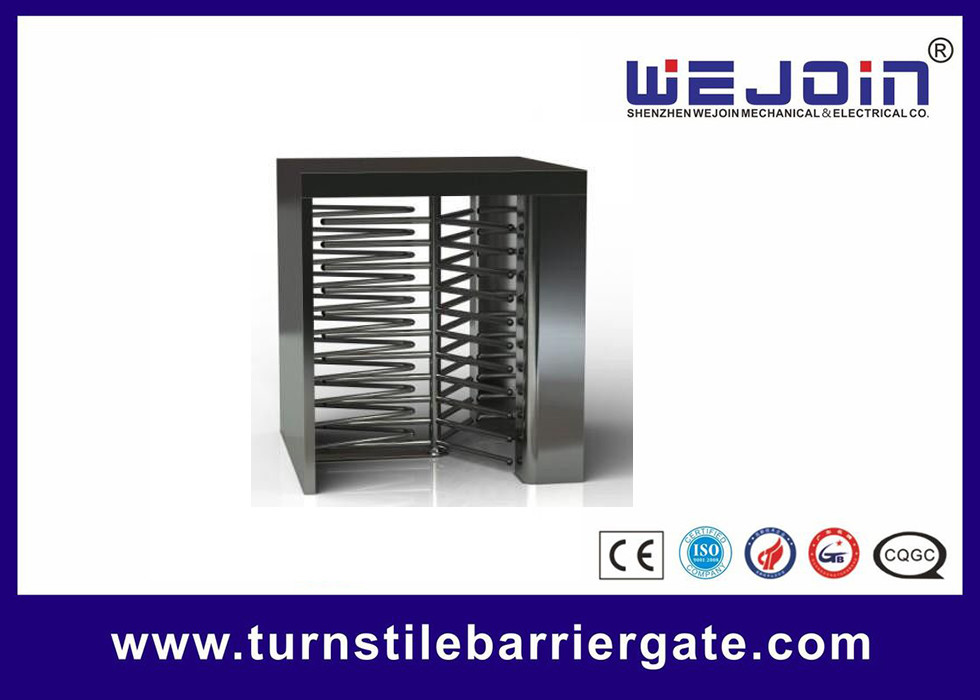

Swipe Card Full height Access Control Turnstile Gate Safety System 50HZ / 60HZ

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJFT611
Minimum Order Quantity: 1PC
Price: Negatiation
Packaging Details: Wooden box
Delivery Time: 10-15 days
Payment Terms: EXW,FOB,CIF
Supply Ability: 50PCS/Week
Contact Now
Detail Information
Material: 304 Stainless Steel Power Supply: AC220V/110V
Warranty: 1 Year Passing Speed: 30-40 Persons/min
Housing Material: 304 Stainless Steel Certification: ISO
Communication Interface: RS485(Distance

Product Description

Swipe Card Full height Access Control Turnstile Gate Safety System 50HZ / 60HZ



Quick Detail:

  • Name: Full height turnstile

  • Feature: Compatiable with IC, ID, magcard, bar code

  • Material : Stainless steel

  • Relative temperature: 10°C~50°C

  • Application: Gateway guard

  • Certificate: CE,ISO

  • Voltage :110V/220V

  • Timel for opening: 0.2s



Operation Place
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control

Description:
1 The full-high turnstile is designed to provide unsupervised access control for office or building.
Counting Function of the controller, LED figure display function (optional)
2. Anti-strike function. Turnstile gate will be locked when there is no open signal.
3. Two rotors allow four possible control points, two entries and two exits. Each rotor can be controlled in one or two directions
4.To gain authorized passage through the turnstile, the user must present a valid card for the access control system.
5. The center rotor will be set free (default) or locked (optional) automatically when the power is off.
6. Compatible with several control devices such as IC, ID, magcard, bar code and so on.
7.. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.
8. The turnstile can also work with push button, fingerprint and face recognition access control system.
9. The full-high turnstile is designed to combine the functions of two single rotor turnstiles into one turnstile.
10. Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off



Specifications

Model
Item

WJFT601

WJFT602

WJFT603

WJFT610

WJFT611

WJFT612

Material of Housing

201 / 304 Stainless Steel

Thickness of Housing

2.00mm

Dimension of Housing
(L×W×H mm)

1630×1500×

2300

1400×1200×

2300

1630×1500×

2300

2800×1813×

2400

2150×1260×

2300

2210×1500×

2300

Length of Pole
(out of framework)

610mm

470mm

510mm

610mm

470mm

610mm

Net Weight

170kg

250kg

230kg

650kg

560kg

650kg

Max Load-bearing of Pole

80kg

30kg

80kg

80kg

30kg

80kg

 Light Indicator

Direction indicating

Produce Processing

Laser cutting fully controlled by computer

Input Interface

 Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V

  Driving Force of Pole

3kgs

Transmission of Pole

Digital Transmission

Working Temperature

10°C~50°C

Rotating Direction

Single/Double Direction (optional)

Communication Interface

Standard RS485 (D<=1200 m)

Power Supply

220V/110V±10%

Relative Humidity

≤ 90%, no condensation

Transit Speed

30~40 person/ minute

Working Environment

Indoor / Outdoor (with Shelter)

Time for Opening

0.2 second

Frequency

50/60HZ
