Full Recovery Time 3s DC 24V Brush Motor Swing Barrier Gate with Auto-Reverse Passing for Parking Management

1PC
MOQ
negotiation
Price
Full Recovery Time 3s DC 24V Brush Motor Swing Barrier Gate with Auto-Reverse Passing for Parking Management
Features Gallery Product Description Request A Quote
Features
Specifications
Arm Length: 500-900mm
Interface: Dry Contact
Motor Material: Steel And Aluminum Alloy
Motor Type: DC 24 V,Brush
Flow Speed: 30-40 People Per Minute
Highlight:

speed gate systems

,

pedestrian gate access control
Basic Infomation
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WITB106
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 5-10 days
Payment Terms: Telex Release,L/C,Western Union
Supply Ability: 50PCS/week
Product Description

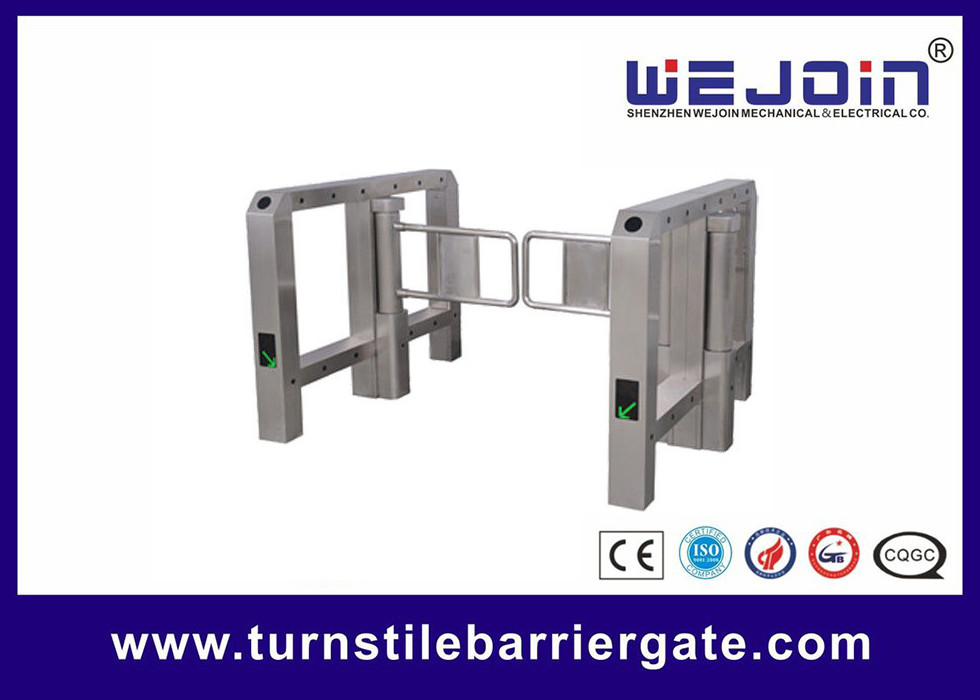

Full Recovery Time 3s Swing Barrier Gate For Parking Management
Full Recovery Time 3s Swing Barrier Gate For Parking Management
Quick Details
  • Name: Swing Barrier Gate
  • Application: Indoor and outdoor (shelter)
  • Feature: Auto-reverse passing
  • Relative Humidity: ≤90%, with no condensation
  • Motor Material: Steel and aluminum alloy
  • Certificate: CE, ISO
  • Motor Type: DC24V, brush
  • Protection Grade: IP32
Product Features
  • Automatic malfunction detection for convenient maintenance and operation
  • Compact electro-mechanical design with unique drive and self-lock mechanism for durability and silent operation
  • Input interface available for dry contact and switch signal connections, compatible with card readers, ticket systems, token systems, fingerprint readers, etc.
  • Audible and visual alarm for unauthorized access to strengthen entrance security
  • Integration capability with fire control devices for emergency release functionality
Technical Specifications
Model Item Swing Barrier Mechanism
Arm Length (Optional) 500-900mm
Mechanism Dimension 108*450mm
Swing Direction Double direction or single
Material Steel and Aluminum Alloy
Driving Motor DC 24V, brush
Input Interface Dry Contact and Switch Signal Connection
Voltage Motor 220V±15%, 110V±15%
Starting time after power on 3s
Time for Opening or Closing 1s
Working Temperature -25°C~50°C
Working Environment Indoor / Outdoor (Shelter)
Transit Speed 30~40 persons/min
Relative Humidity ≤90%, with no condensation
