| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO9001 |
| Model Number: | TYH02 |
| Minimum Order Quantity: | 1 PCS |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 10 working day |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Anti Pinch: | Yes | Opening & Closing Speed: | 0.2~1 Seconds Adjustable |
|---|---|---|---|
| Input Voltage Of Controller: | DC24V | Input Voltage Of Power Supply: | AC100~240V |
| Card Reader: | ID | Working Temperature: | -35℃ ~ +80℃ |
| Working Humidity: | 90% (no Condensation) | Material: | 304 Stainless Steel |
| High Light: | anti pinch flap barrier gate,ac100v flap barrier gate,anti pinch flap barrier system |
||

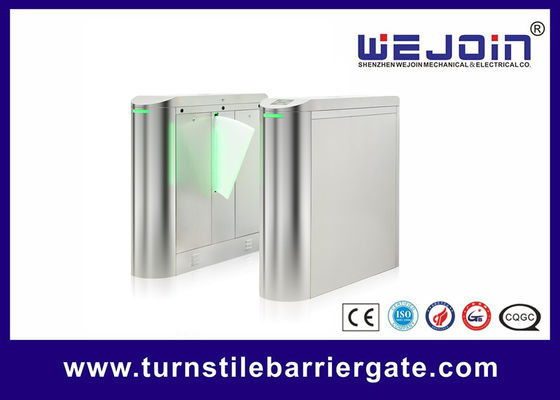

This product has adopted brushless control technology, which allows for the real-time detection of the motor position. A physical anti-pinch protection feature is available with adjustable sensitivity.
Moreover, different passing modes are supported, such as passing by card reader and free passing. Several passing logic detections are in place, including illegal intrusion,reverse passing, and anti-pinch by infrared.
This device is able to be opened and closed at adjustable speed. In addition, it will automatically open when power is off. Not only does it output a relay signal for illegal intrusion, entrance and exit, but also an optional remote control for the user.
Working Temperature: This device has a working temperature of -35℃ to +80℃.
Input Voltage of Power Supply: It requires an AC100 to 240V input voltage.
Input Voltage of Controller: The input voltage of the controller needs to be set at DC24V.
Motor Power: Its motor power is rated at 50W.
Relative Humidity: The relative humidity range for this device is 90% without any condensation.
Intelligent technology is being utilized to make high-level venues like communities, buildings, and hotels more efficient. Management and control of pedestrian access has been improved thanks to the use of this technology. The most common applications of intelligent technology can be found at high-speed railway stations, subway stations, BRT stations, and scenic ticket systems.
We provide technical support and services for our Flap Barrier Gate products, including:
The Flap Barrier Gate will be securely packaged in bubble wrap and placed in a cardboard box. The box will be securely sealed with tape. The package will be labeled with the destination address and a barcode for tracking.
The Flap Barrier Gate will be shipped via a reliable courier service. Once the order has been placed, the customer will be provided with a tracking number for the package.
