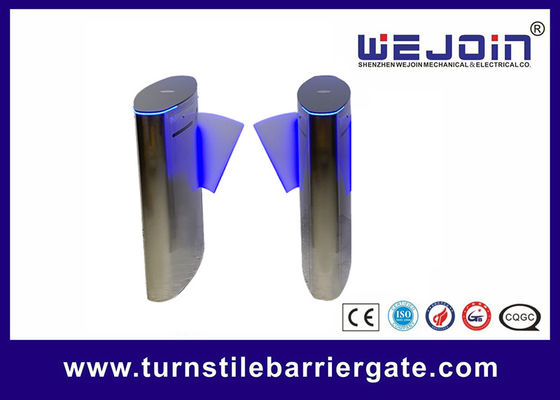

RFID Access Control High-Speed ESD Turnstile Flap Barrier Gate
Product Introduction
Intelligent flap barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions, and high reliability, which can be applied in high-class communities, intelligent buildings, hotels, subway stations, and other high-level venues and then achieve more intelligent management and control of pedestrian access. The most typical intelligent application is the high-speed railway station, subway station, BRT station, scenic ticket system, and so on.
Flap Barrier Gate Description:
1. Flap barrier is the combination of machinery, electronics, CPU control, and a variety of personal authentication identification technology. IC cards, ID cards, code bars, and fingerprint identification units are compatible with the flap barrier.
2. Intelligent flap barrier is a brand-new product of WEJOIN company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control. WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions, and high technology.
3. It has applications in high-class communities, intelligent buildings, hotels, subway stations, and other high-level venues.
4. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicators to realize the intelligent management of access control is to comply with the fire safety requirements.
5. Flap barrier motor can be classified into the single motor and double motors. The single one is used for a single lane and the double one is used for multi-lanes.
Flap Barrier Gate Specifications
Model |
WJTY502SV |
Cabinet dimension |
1200mm(L)×300mm(W)×1000mm(H) |
Stretching-out flap length |
280mm |
The max lane width |
660mm |
Cabinet material |
304 stainless steel |
Power supply |
AC220V±15%, AC110V±15% |
Motor voltage |
DC24V (servo motor) |
Access device input voltage |
dry contact or 12V electrical level signal or >100ms 12V impulse signal or driving current >10mA |
Max flow rate |
30~40 people per minute |
Flap opening/closing time |
1 sec |
reset time when power on |
3 sec |
protection grade |
IP32 |
working environment |
outdoors (with shelter) and indoors. |
working temperature |
-10°C~50°C |
