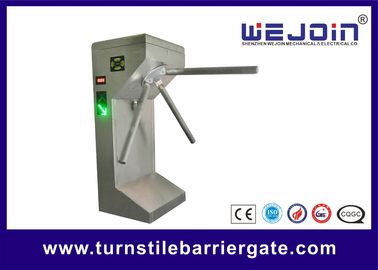

304 Stainless Steel Subway Tripod Turnstile Entry Systems Intelligent Barrier

Basic Information
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: ISO 9001:2008, CE,
Model Number: WJTS122S
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Detail Information
Material: 304 Stainless Steel Color: Silver
Voltage: 110V/220V Package: Wooden
Length Of Pole: 490mm Relative Humidity: ≤95%
High Light:

turnstile entry systems

,

pedestrian security gates


Product Description

304 Stainless Steel Subway Tripod Turnstile Entry Systems Intelligent Barrier



Quick Detail





Name Semi-utomatic Tripod turnstile Transit Speed 30~40 persons/min
Rated Power 36W Driving Motor Brushless DC Moto
Power Supply
220V±10%, 110V±10% Rotating Direction Double Direction





Function and Features



(1). A compact electro-mechanical design with an exquisite rotating plate and a self-lock mechanism

(2). Passable for bi-direction

(3). Self-locking within 5 seconds if there is no one passing after signal activation

(4). Arm auto dropping when power off and manually put the arm up when power on

(5). Person counter output is available to indicating passenger quantity; the pulse is 200MS

(6). Able to avoid unauthorized access

(7). Fire alarm emergency signal output: if with arm auto drop function, the arm will drop automatically after signal activation; if not, the arm rotating plate can operate freely and there is alarm after signal activation

(8). Input interfaces available for left access(L), right access(R), emergency(EM), GND; EM is in priority; NO electrical replay output with pulse between 200MS~500MS; EM signal should maintain connected when any emergency happens.

(9). Output interfaces available for passenger counters (left and right side); it is dynatron OC output with the pulse of 200MS; working with devices of DC 5V, 12V, 24V.

(10). Emergency Alarm interfaces available for alarm equipments under 12W or DC12V





Specifications



Model
Item
WJTS122S
Manual, Semi or Full-automatic Semi-automatic
Material of Housing 304 Stainless Steel
Thickness of Housing 1.50mm
Dimension of Housing
(L×W×H mm)
420×380×1000
Length of Pole (out of housing) 490mm
Net Weight 40kg
Max Load-bearing of Pole 80kg
Driving Force of Pole 3KG
Rotating Direction Double Direction
Power Supply 220V±10%, 110V±10%
Frequency 50/60HZ
Working Voltage of Motor DC12V
Rated Power 36W
Driving Motor Brushless DC Motor
Input Interface dry contact with the pulse between 200ms~500ms
Transit Speed 30~40 persons/min
Working Temperature -40°C~55°C
Working Environment Indoor / Outdoor (Shelter)
Relative Humidity ≤95%



Applications



The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.



After-sale Service



1 year warranty

Lifetime Service with charge accordingly





Detail Preview



(1) Semiauto Tripod Turnstile Mechanism



304 Stainless Steel Subway Tripod Turnstile Entry Systems Intelligent Barrier 0

(2) Rotating Plate and Boom

304 Stainless Steel Subway Tripod Turnstile Entry Systems Intelligent Barrier 1
