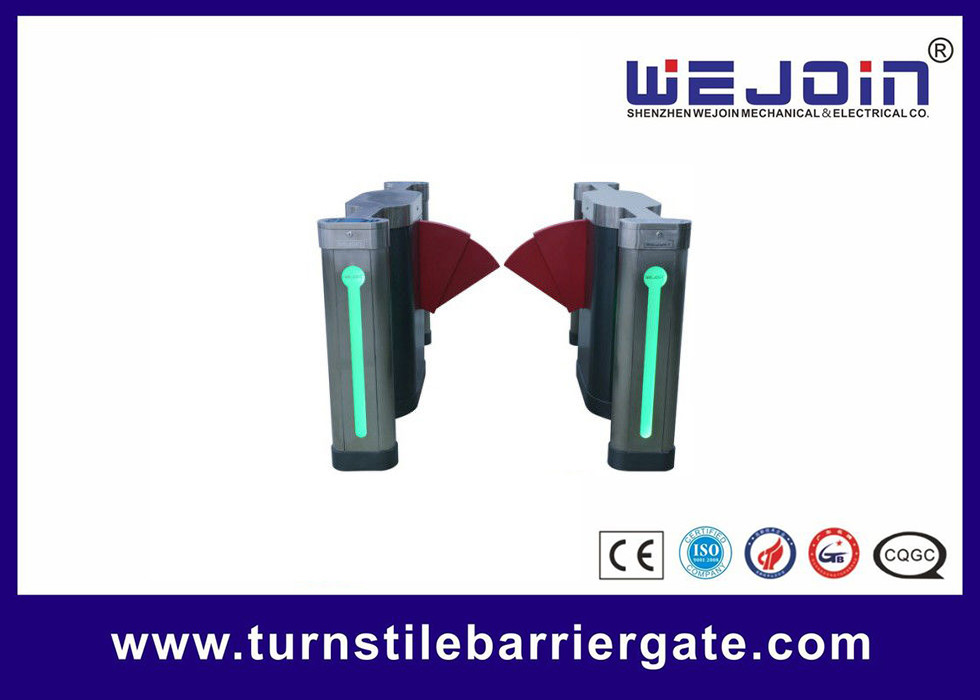

900mm Width Electronic Flap Barrier Gate / Pedestrian Automatic Systems Turnstiles

Basic Information
Place of Origin: China,Shenzhen
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJTY301
Minimum Order Quantity: 2pcs
Price: negotiation
Packaging Details: Wooden box
Delivery Time: 10-30 days
Payment Terms: T/T,Western Union
Supply Ability: 50PCS/week
Detail Information
Arm Length: 450mm Lane Wideth: 900mm
Wing Material: Resin,or PVC Motor: DV12V
Protaction Grade: IP32 Material: 304 Stainless Steel & Aluminum Alloy
High Light:

optical turnstile

,

half height turnstile


Product Description

220mm Electronic Flap Barrier Gate  /  Pedestrian Automatic Systems Turnstiles



Quick Detail:

  • Machine core: dexterous telescope falp width 220mm only

  • Material: cold rolled steel & aluminum alloy

  • Function: automatic

  • Direction: bi-direction

  • Power supply AC220V±15%, AC110V±15%

  • Motor voltage DC24V (brush motor)

  • Working temperature -25°C~50°C

  • Protection grade IP32

  • Direction: bi-direction



Description:

1. WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high technology

2. It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.

3. Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier.

4. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.

5. Flap barrier motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.

6. Intelligent flap barrier is a brand-new product of WEJOIN company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control.



Applications:

High class communities, intelligent buildings, hotels, subway stations and other high level venues.



Functions and Features

1. Alarm for unauthorized access and no access against passenger flow

2. Input interface available for dry contact and switch signal connection.

3. Automatic detection for malfunctions.

4. Adjustable auto-delay closing

5. Infrared photocells for safety access

6. A compact electro-mechanical design with unique drive and a self-lock mechanism (no need regular gear clutch structure).

7. Emergency interface available.

8. Auto-closing when power on

9. Auto-open and free access when power off

10. Traffic light indicating passenger access

11. Adjustable access directions.

12. No battery is needed.

13. Anti-reverse passing



Specifications

Model

WJTY302

Cabinet dimension

1715mm(L)×315mm(W)×1080mm(H)

Stretching-out flap length

440mm

The max lane width

900mm

Cabinet material

304 stainless steel & aluminum alloy

Power supply

AC220V±15%, AC110V±15% 50/60Hz

Motor voltage

DC24V (brush motor)

Protect grade

IP32

Max flow rate

30~40 people per minute

Flap opening/closing time

1s

reset time when power on

2s

Access device input voltage

dry contact

working environment

outdoors (with shelter) and indoors.

working temperature

-10°C ~ +50°C
