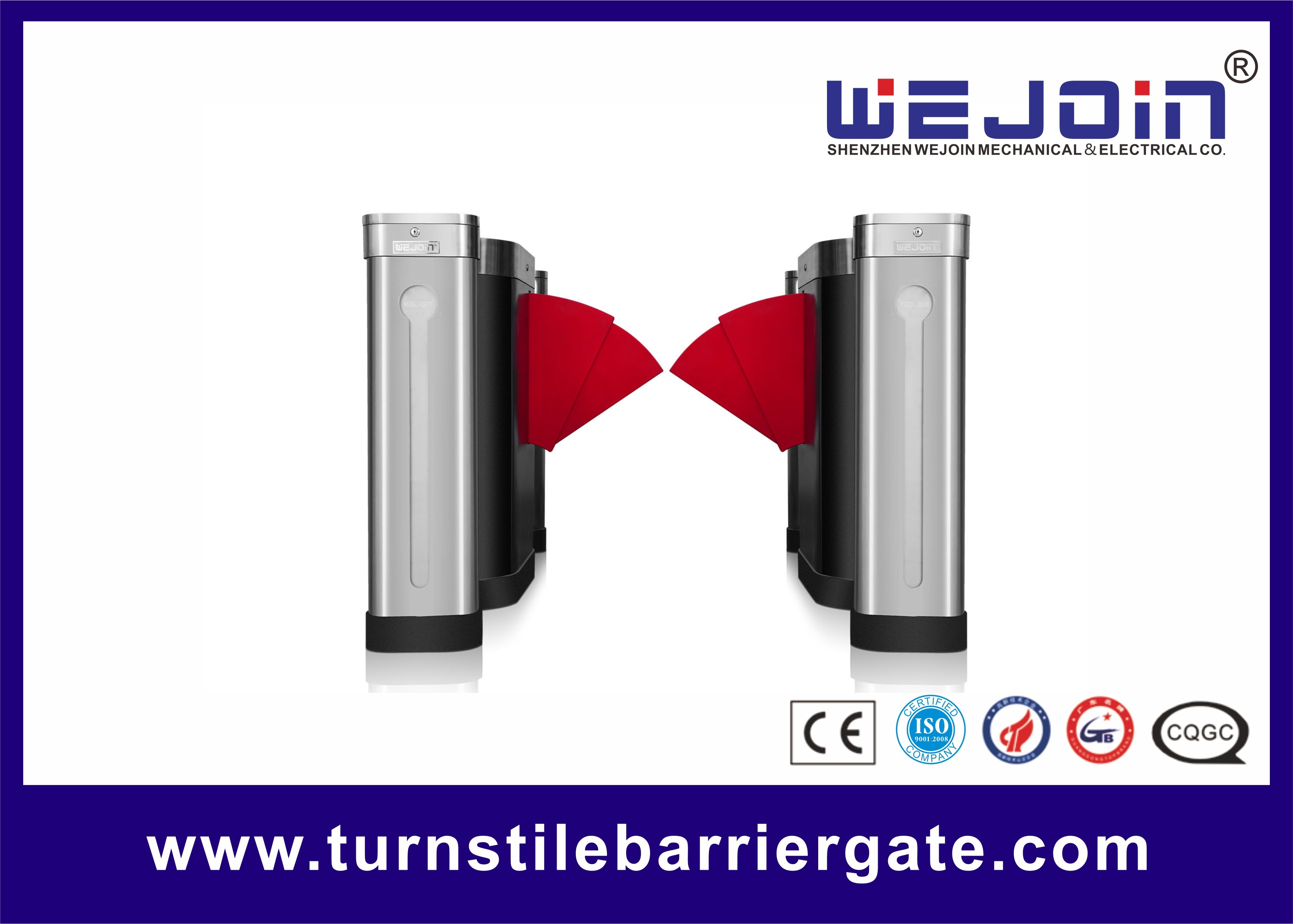

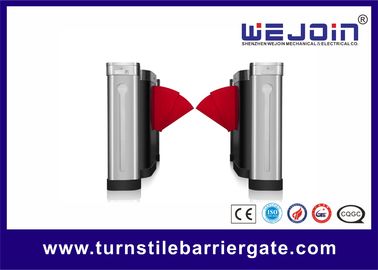

Extending Flap Pedestrian Turnstile Gate

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE;ISO;SGS
Model Number: WJTY301
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden package
Delivery Time: 3-5 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 2000+pair+per month
Detail Information
Housing Material: 304 Stainless Steel Width Length: 900mm
Wing Material: PU Rubber Standard Package: Wooden Package
Leading Time: 3-5 Working Days After Payment Received Package: Wooden
High Light:

optical turnstile

,

half height turnstile


Product Description

Extending Flap Pedestrian Turnstile Gate 304 Stainless Steel for Subway Station​

Feature and Function



1. A compact electric and mechanical design with unique drive which ensure product durability and silent

operation, and its self-lock mechanism can also well protect the access control security.



2.WEJOIN flap barrier barriers have automatic detection for malfunctions, which will be convenient for

customer to maintain and operate.



3.WEJOIN flap barrier barriers have input interface that are available for dry contact and switch signal

connections. So that customers can integrate the flap barrier with different system, like card reader, ticket

system, token system etc.



4.WEJOIN flap barrier barriers have auto delay closing function, after the flaps open if no pedestrian passes



5.WEJOIN flap barrier barriers can be integrated with fire control device, which allow the release on

emergency for security consideration.



6.WEJOIN flap barrier barriers have audible and visual alarm in case of unauthorized access, which can

 strengthen the entrance security.



7. Infrared photocells for safety access



8. Anti-reversing passing



9. Auto closing when power on



10. Auto open and free access when power off



11. Adjustable access directions



13. Traffic light indicating passenger access

Extending Flap Pedestrian Turnstile Gate 0



Specifications:

Model

WJTY311

Stretching-out flap length

440mm

The max lane width

900mm

Cabinet material

Cold rolled steel & aluminum alloy

Material of Flap Door

Resin, or PVC

Housing of thickness

1.5mm

Normal Life Span

3 millions times

Communication Interface

Standard RS485(distance less than 1200 meters)

Transit speed

30-40 persons/min

Time for opening or closing

1s

Starting time after power on

3s

Input interface

Dry contact signal or +12Vor pulse signal with width more than

100ms DC12V

Transit speed

25~32 persons/min

Working temperature

-10°C~50°C

Working environment

Indoor / Outdoor (Shelter)

Relative humidity

≤95%, no condensation









Certificate:

Extending Flap Pedestrian Turnstile Gate 1





Applications:



High class communities, intelligent buildings, hotels, subway stations and other high level venues and then

achieve a more intelligent management and control of pedestrian access. The most typical intelligent

application is high speed railway station, subway station, BRT station, scenic ticket system and so on.

Extending Flap Pedestrian Turnstile Gate 2





General Information



Place of Origin:

China

Brand Name:

WEJOIN

Certification:

CE,ISO

Model Number:

WJTY301



Minimum Order Quantity:

1pcs

Price:

negotiation

Packaging Details:

wooden box

Delivery Time:

5-15days

Payment Terms:

Ex works

Supply Ability:

800PCS/month
