Infrared photocell socket optional sliding gate operator reversing on obstacle

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: Carton
Payment Terms: T/T, Western Union
Supply Ability: 10000 set / month
Detail Information
Material: Aluminum Alloy Die-cast Name: Sliding Gate Operator
Remote Control: 418MHZ Power: AC
Certification: CCC Max.weight Of Gate: 1800kg
High Light:

electric gate operators

,

automatic sliding gate opener


Product Description

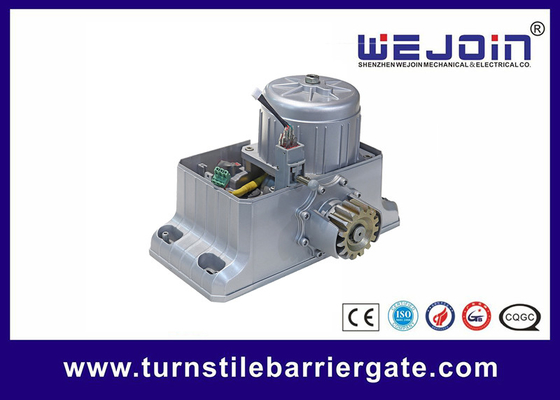

Infrared photocell socket optional sliding gate operator reversing on obstacle



Features

Steel rack and steel geer drive

Soft start and soft stop

Thermal protection built in motor winding

Drive setup is made up of turbine and worm, working placidly.

Assemble easily. In case of power failure, the gate can be opened and closed manually after release lutch.

Remote control, AC powered.



Our service

Your inquiry concerned about our products or prices will be replied in 12 hours.

Well-trained and experienced sales staffs will reply all your concerns in fluent English.

OEM services are welcomed, and we can help you to print your logo, company information etc on our products and package .

Protection of your sales area, ideas of design and all your private information.

Delivery by air mail or ship for your orders.

With years of manufacture and promotion experience in global market, WEJOIN brings you profit and great success!



Troubleshooting
I. The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.

B: Check whether the limit iron is installed right. Adjust the position of the limit iron.



Motor Data

Model

WJKMP202

Voltage

220V±10%

110V±10%

Frequency

50HZ

60HZ

Current

2.7A

5.8A

Motor voltage

AC220V / 110V

Capacitor

20μf

60μf +14μf

Output Power

350W

Absorbed power

594W

638W

Torque

35nm



Notice

The rail should be embedded right. The wheel of the gate should be right and installed well. These are key points for the gate running well. Adjust the bolts which can make the gate operator up or down to make the gear fit the rack well. Make sure that the gate can be moved by an adult when the clutch is opened.
