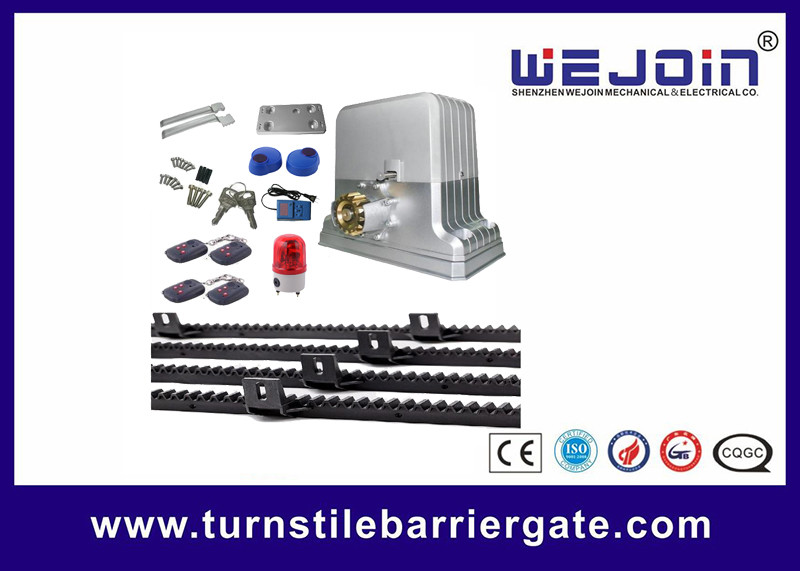

High Safety Automatic Sliding Gate Opener Magnetic Switch Limit IP44 Protection

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Carton
Payment Terms: T/T, Western Union
Detail Information
Material: Aluminum Alloy Die-cast Function: Control
Name: Sliding Gate Operator Motor Number: M=4
Certification: CE,CCC Voltage: 220 V / 110 V
High Light:

sliding gate opener motor

,

automatic sliding gate opener


Product Description

Safety Gate Opener Automatic Sliding Door Operator electric motor 1800kg





Function And Features:

1) Magnetic switch limit
2) Aluminum alloy Gear Box
3) Thermal protection at 125°c built in motor winding
4) In case of power failure, the gate can be opened and closed manually after release clutch
5) Protection class IP44
6) Operating environment temperature -20°c ~ + 50°c
7) Option: Photocell, Alarm Lamp



Main Feature

1) It’s using automobile breaking system for stopping the motor.
2) The shell made by using technics of aluminum alloy pressuring, covered by combination coating.
3) Extremely fast start-up process.
4) Pure copper core, Strong conductivity.
5) Motor’s gear supplier is military’s equipment supplier.
6) Due to the material, less noise, and slow heat-up process.
7) Assembled with Taiwan motor core and Taiwan electronic hardware.
8) Highly integrated design.
9) Hardened chassis.
10) Using Special lubricating oil, It cause High mechanical conversion rate.



Motor Data & Electronic Data

Model: KMP 202

Voltage: 220V±10%, 110V±10%

Frequency: 50/60Hz

Current: 2.7A, 5.8A

Motor voltage: AC 220V/110V

Power: 350W

Torque: 35nm

Motor number: M=4

Model: KMP202

Soft start: YES

Stop on obstacle (sensitivity adjustable): YES

Auto warming-up (at freezing temperature): YES

Remote control: 418MHz (50m, approx)

Wire control: Available

Auto closing: YES

Vehicle loop detector socket: YES

Photocell socket: YES

Alarm light socket: YES



Rack installation
Make the gear of the gear rack towards the floor. Make the gear of the rack fit the gear of the motor. Fasten the gear rack to the door with the screws. Push the gate and make it move the whole route Fasten the gear to the gate after assuring that the gate run smoothly the whole route.
Rack is usually installed piece after piece. To avoid dithering or blocking, please adjust the gap of the gear rack. We suggest one way( refer to Fig-3): fix up the rack1 and rack after adjusting the two racks with the small adjusting rack.



High Safety Automatic Sliding Gate Opener Magnetic Switch Limit IP44 Protection 0
