| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | WJCB02H |
| Minimum Order Quantity: | 1 set |
| Price: | negociate |
| Packaging Details: | carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Motor Material: | Aluminum Alloy | Operating Time: | 0.9-5s |
|---|---|---|---|
| Boom Type: | Carbon Fiber Round Boom | Color: | Grey |
| Application: | For Enterprises And Institutions | Warranty: | 1 Year |
| High Light: | parking lot arm gate,car park barriers |
||

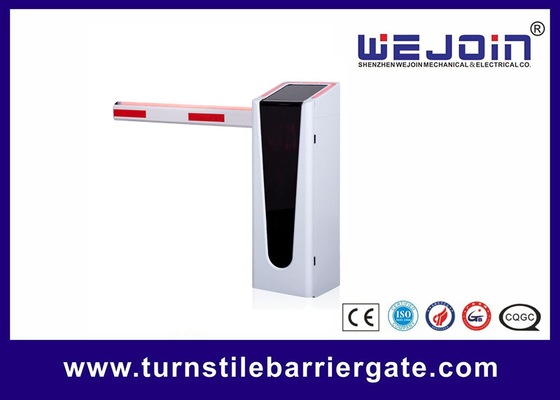

Road safety parking equipment barrier gate with LED straight arm
Product Introduction
Servo barrier gate WJCB02 have novel and cartoon appearance, stable and reliable performance, and can be equipped with straight boom, folding boom, fence boom, with adjustable left and right directions. It can be used for hotels, garden villas, housing estates, parking lots, enterprises and institutions and other occasions.
WEJOIN Commercial Servo Barrier Gate WJCB02
Fastest running speed can be 0.4 second (model WJCB02E, 0.4~0.9s adjustable), 100% duty cycle and free-maintenance make the barrier be proper for toll station and parking system!
Product parameters
|
Working temperature |
-35°C~+85°C |
Humidity |
≤90% |
|
Voltage |
AC 220V±10%, AC110V |
Operation time |
0.9s~5s |
|
Max Motor Power |
300W |
Remote control distance |
≤30m |
|
Boom length |
straight:0-6m, fence:0-4.5m, folding:0-5m |
||
Parking Barrier Gate Features:
1. DC permanent magnet synchronous motor(PMSM),servo control.
2. Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.
3. Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4. Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)
5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)
FAQ
1.Q:What's you warranty?
A:1 year time free warranty.
2.Q: Do you provide free samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pcs.
3.Q: Does the barrier has a input switch that can be used to connect the RFID signal output?
A:Yes,the barrier has the input switch.
4.Q:Does it have input entries on the barrier to install the proximity sensor and the mass sensor?
A:Yes,it has input entries.
5:Q:Is there anything prevents the barrier from closing on top of the car?
A:Our company has vehicle detectors and infrared detectors to prevent the barrier from closing on top of the car,but these detectors need to be purchased separately.If you want to know more details, please consult us.
