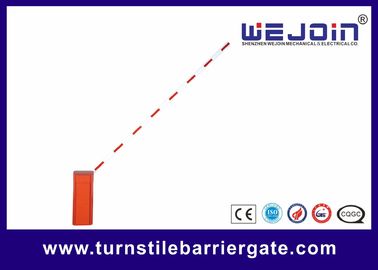

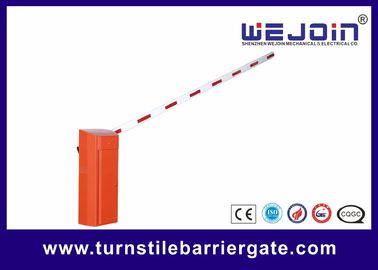

CB01 Commerrcial Variable Frequency Barrier Gate with Round Foaming Boom
Independent designed and developed by WEJOIN,commercial variable frequency barrier has functions as following:
1.New deceleration device,using CNC comprehensive precision process;reducing notice,preventing oil spills,better working,more convenient maintenance.
2.Cranks of main power output,use cast steel,swing crank uses strengthen design,the working life can be 8 million times during normal maintenance.Daily working times(non-stop) can be over 20000.
3.The motor well adapts to high and low temperature(-35℃~85℃)
4.New digital limit technology,free adjusting,precise control;Buffer and slow down when arem goes to limit position,working is more stably.
5.TCP/IP online inerface(optional).
6.2 years warranty for mechanism.
7.Power supply control,voltage range is wide.
8.Menu type control panel,convenient to choose working speed,working temperature,counting,auto-closing time,up angle,RS485 communication,sensibility of reversing on obstacle,fault code and etc.Operating and maintenance is more convenient.
Product Parameter
Working temperature:35℃~85℃
Power supply:AC 220V/110V±10% 50/60HZ
Power consumption:300W
Relative humidity:≤90%
Remote control distance:≥30m
Insulation grate:F
Parameter choose:direction,length,boom style
Operation Time Table
| Boom type(s) | Open/Close speed(s) | Time from open to chose(s) |
| Big type arm ≥6 | 2.5 | 4.5 |
| Big type arm 4.5-6 | 1.8 | 3.8 |
| Middle type arm 4-4.5 | 1.5 | 3.3 |
| Middle type arm 3.5 | 1.2 | 2 |
| Middle type arm 3.5 | 0.9 | 1.8 |
Optional Arm Type
Housing dimension
