products

Access Control slim speed gate turnstile Automatic IP32 Protection

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: ISO,CE
Model Number: WJTY601
Minimum Order Quantity: 1unit
Price: negotiation
Packaging Details: Wooden box
Delivery Time: 10-30 days
Payment Terms: T/T, Western Union
Supply Ability: 50PCS/week
Detail Information
Wing: Organic Glass Function: Anti-collision
Advantage: High Quality, Service & Factory Price Operation: Bi-direction
Usage: Metro Station, Office, Library, Hotel Trade Terms:: EXW,CIF
High Light:

1100mm Slim Speed Gate Turnstile

,

IP32 Slim Speed Gate Turnstile

,

IP32 speed gate turnstile


Product Description

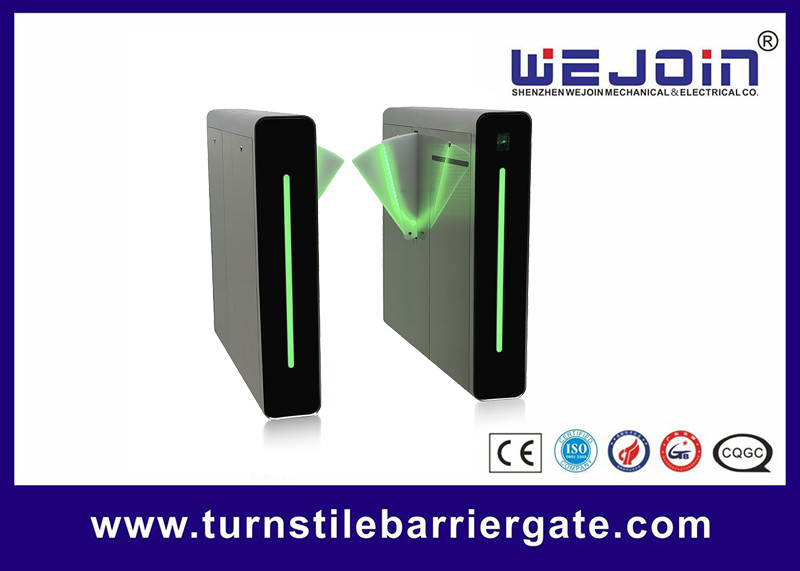

Access Control Slim Speed Gate Turnstile Automatic IP32 Protection



Access Control Speed Turnstile Barrier Automatic Gate Speed Turnstile Gate



Speed Gate Functions & Feature:

1. Adopting a self-developed planetary gear reducer structure, driven by DC permanent magnet motor, it has special dynamic characteristics such as compact structure, large torque, low noise, and wear resistance.
2. Adopting a self-developed servo control system, for precise control, more flexible running, less mechanical impact, and longer service life.
3. Using frequency conversion technology, which realizes running speed adjustment, to meet different access requirements and have a better experience.
4. Mechanical transmission parts are precisely made of high-strength plastic with a pure mode design, which improves the
accuracy of spare parts and assembly, with a more compact operation, smaller operation gap, and longer service life.



Flap Barrier Technical Specifications:

1. Cabinet dimension: 1200mm (L)*200mm (W)*110mm (H)

2. Stretching-out flap length: 275mm

3. The max lane width: 1100mm

4. Cabinet material: 304# stainless steel

5. Power supply: AC220V±15%, 50HZ or AC110V±15%, 60Hz

6. Motor voltage: DC 24V (servo motor)

7. Access device input: dry contact or 12V electrical level signal or>100ms12V impulse signal or driving current>10mA

8. Max flow rate: 30~40 people per minute

9. Flap opening/closing time: 0.2s

10. Reset time when power on: 3s

11: Protection grade: IP32

12. Working environment: indoors and outdoors with shelter

Working temperature: -25℃ - 50℃

Relative humidity: ≤90%
