Compression Spring Parking Automatic Barrier Gate , Telescopic Arms Barrier Control Systems

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO
Model Number: WJDZ101
Minimum Order Quantity: 1 set
Price: USD+350-495+set
Packaging Details: Carton Package
Delivery Time: 3-7 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 5000 sets per month
Detail Information
Material Of Housing: Iron Speed Of Motor: 1s,1.8s,3s,6s
Max Boom Length: 6m Standard Color: Blue Cover, Orange Body & White Door
Standard Package: Carton Package Boom Type: Telescopic Boom
High Light:

automatic car park barriers

,

security barrier gate


Product Description

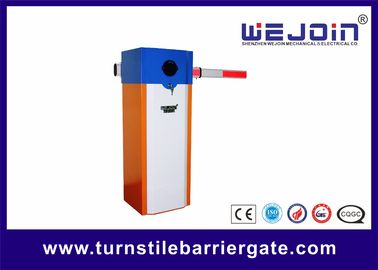

Compression Spring Automatic Parking Barrier Gate Arms Barrier Gates





Application



Suitable for indoor as well as outdoor parking area
Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access

shopping malls, hospitals, stadiums, business centers,etc.



Technical Specification



Description

Parameter

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

60kgs

Arm Speed

1s, 1.8s, 3s, 6s

Max boom length

6 meters




Features:

Advanced Features:



1. Safe---the barrier will automatically go back when meet obstacles during closing.





2, Swing Out---Arm will swing out when hit directly by vehicle (only 1 second model ) to avoid further

damage on the vehicle.



3. Clutch key can be used to release the clutch when power off.





4. Fan cooling machine reduces the motor temperature by high frequency using, and never get over-

heated. Unique temperature calefaction design for low temperature using prevents freezing in cold weather.



5. Exactitude aluminum alloy die-casting motor base reduces the noise and joint abrasion to prolong the

barrier gate working life.



6. Thimble type motor worm design for preventing plugging up in using.



7. Balance spring--- no noise and easy adjusting.



8. Double limit ways (electronic limit and motor sensor memory limit) for boom rising and falling.




Certification:



WEJOIN product manufacturing and testing are conducted in rigorous conformation with ISO international

quality management system standards, allowing our company to be ISO certified. Meanwhile, our products

 have earned CE marking and more than 80 patent rights.
